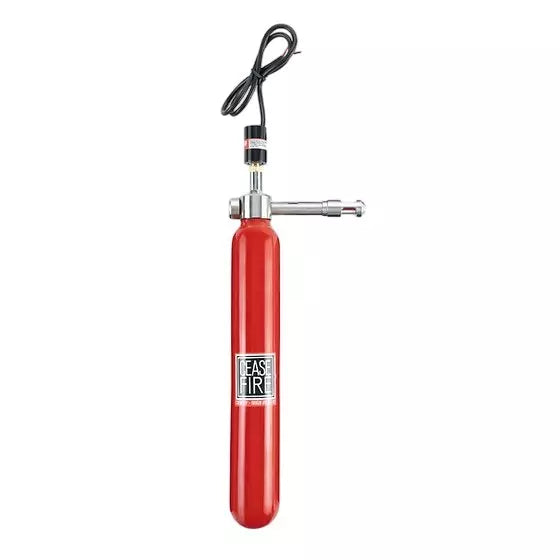

Ceasefire Automatic Mini Pro Adaptive SS Stored Pressure Red (Thermal bulb of 57C and NRV) (CF-001348AAP)

The Ceasefire Mini Pro Adaptive CF-001348AAP is a 500g automatic micro-environment fire suppression unit filled with the clean agent Fluoroketone (FK-5-1-12), supplied with a 50mm barrel and a 57°C quartzoid bulb. It is designed for spaces too small to hold the unit itself: the body is mounted outside the enclosure and the thin barrel, carrying the heat-sensitive glass bulb, goes inside. When the temperature inside rises past the bulb rating, the agent discharges automatically, with no power supply or human intervention.

The Pro version has a pressure monitoring port, so it can be made monitorable by adding an optional pressure switch and linking it to a BMS, fire alarm system or standalone sounders and strobes.

Key features

• Body mounted outside the enclosure, with a 50mm barrel reaching inside
• Pressure monitoring port for an optional pressure switch
• Fully automatic detection, actuation and suppression; no power supply needed
• Clean agent FK-5-1-12 leaves no residue and will not damage electronics
• For Class A, B, C and electrically started fires
• Fluoroketone falls outside the F-Gas Regulations
• Supplied with a black powder-coated steel transportation bracket

Technical specifications

• Product code: CF-001348AAP
• Agent: Fluoroketone (FK-5-1-12), stored pressure
• Capacity: 500g
• Barrel length: 50mm
• Actuation temperature: 57°C
• Minimum discharge time: 1 to 3 seconds
• Coverage volume: 0.650m³
• Concentration: 4.7% (v/wt)
• Filled weight: Approx. 1.46kg
• Shell: Stainless steel 316L (1.4435), minimum wall thickness 1.2mm, red powder coated
• Shell diameter: 50mm
• Height (body): Approx. 336mm
• Transportation bracket (H x W x D): 282 x 87 x 67mm
• Service pressure: 10 bar
• Test pressure: 35 bar
• Operating temperature: -20°C to +60°C
• Warranty: 5 years
• Certification: PED, UKCA-PED; fire-fighting performance tested by BSI
