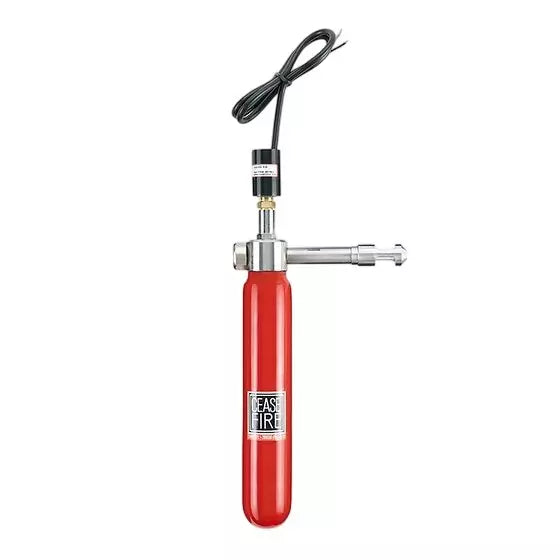

Ceasefire Automatic Mini Pro Adaptive SS Stored Pressure Red (Thermal bulb of 57C and NRV) (CF-001344AAP)

The Ceasefire Mini Pro Adaptive (CF-001344AAP) is a 300g automatic micro-environment fire suppression unit filled with the clean agent Fluoroketone (FK-5-1-12), supplied with a 50mm barrel and a 57°C quartzoid glass bulb. It is designed to protect small enclosed spaces that are vulnerable to fire, such as servers and fuse boxes.

The Adaptive version is intended for micro-environments that are too small to hold the unit itself: the Mini Pro body is mounted outside the enclosure and the thin barrel, with its heat-sensitive glass bulb, goes inside. When the temperature inside rises past the bulb rating, the bulb breaks and the agent is discharged automatically, with no power supply or human intervention needed.

Key features

• Fully automatic thermal actuation via a 57°C quartzoid bulb; no power supply required
• Clean agent Fluoroketone (FK-5-1-12): leaves no residue and causes no damage to electronics
• Suitable for Class A, B, C and electrically started fires
• Pressure monitoring port: can be made monitorable with an optional pressure switch and connected to a fire alarm system, building management system or standalone sounder/beacon
• Magnetic Bourdon tube pressure gauge
• Clean agent variant falls outside the scope of the F-Gas Regulations
• 5 year warranty

Technical specifications

• Product code: CF-001344AAP
• Agent: Fluoroketone (FK-5-1-12), stored pressure
• Capacity: 300g
• Barrel length: 50mm
• Actuation temperature: 57°C
• Coverage volume: 0.29m³
• Minimum discharge time: 1 to 3 seconds
• Concentration: 4.7% (v/wt)
• Filled weight: 1.07kg
• Shell: Stainless steel 316L (1.4435), 1.2mm minimum wall thickness, red epoxy powder coated
• Shell diameter: 50mm
• Total height (approx.): 231mm
• Service pressure: 10 bar
• Test pressure: 35 bar
• Operating temperature: -20°C to +60°C
• Transportation bracket: Black powder-coated mild steel, 170 x 87 x 67mm
• Certification: PED, UKCA-PED; fire-fighting capability tested by BSI
