Ceasefire Automatic Mini Pro Adaptive SS Stored Pressure Red (Thermal bulb of 57C and NRV) (CF-001344ABP)
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
- Fully automatic thermal actuation via a 57°C quartzoid bulb; no power supply required
- Clean agent Fluoroketone (FK-5-1-12): leaves no residue and causes no damage to electronics
- Suitable for Class A, B, C and electrically started fires
- Pressure monitoring port: can be made monitorable with an optional pressure switch and connected to a fire alarm system, building management system or standalone sounder/beacon
- Magnetic Bourdon tube pressure gauge
- Clean agent variant falls outside the scope of the F-Gas Regulations
Frequently bought together
Product details
The Ceasefire CF-001344ABP is an automatic fire suppression unit for small enclosed spaces such as electrical cabinets, fuse boxes and server enclosures, with a clean agent that leaves no residue on electronics.

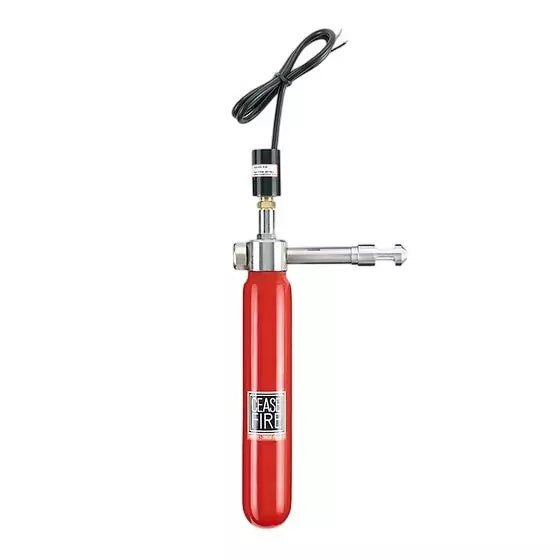

The Ceasefire Mini Pro Adaptive (CF-001344ABP) is a 300g automatic micro-environment fire suppression unit filled with the clean agent Fluoroketone (FK-5-1-12), supplied with a 100mm barrel and a 57°C quartzoid glass bulb. It is designed to protect small enclosed spaces that are vulnerable to fire, such as servers and fuse boxes.
The Adaptive version is intended for micro-environments that are too small to hold the unit itself: the Mini Pro body is mounted outside the enclosure and the thin barrel, with its heat-sensitive glass bulb, goes inside. When the temperature inside rises past the bulb rating, the bulb breaks and the agent is discharged automatically, with no power supply or human intervention needed.
Key features
- Fully automatic thermal actuation via a 57°C quartzoid bulb; no power supply required
- Clean agent Fluoroketone (FK-5-1-12): leaves no residue and causes no damage to electronics
- Suitable for Class A, B, C and electrically started fires
- Pressure monitoring port: can be made monitorable with an optional pressure switch and connected to a fire alarm system, building management system or standalone sounder/beacon
- Magnetic Bourdon tube pressure gauge
- Clean agent variant falls outside the scope of the F-Gas Regulations
- 5 year warranty
Technical specifications
- Product code: CF-001344ABP
- Agent: Fluoroketone (FK-5-1-12), stored pressure
- Capacity: 300g
- Barrel length: 100mm
- Actuation temperature: 57°C
- Coverage volume: 0.29m³
- Minimum discharge time: 1 to 3 seconds
- Concentration: 4.7% (v/wt)
- Filled weight: 1.07kg
- Shell: Stainless steel 316L (1.4435), 1.2mm minimum wall thickness, red epoxy powder coated
- Shell diameter: 50mm
- Total height (approx.): 231mm
- Service pressure: 10 bar
- Test pressure: 35 bar
- Operating temperature: -20°C to +60°C
- Transportation bracket: Black powder-coated mild steel, 170 x 87 x 67mm
- Certification: PED, UKCA-PED; fire-fighting capability tested by BSI
Used for: micro-environment protection of fuse boxes, electrical panels, server and network cabinets and similar small enclosures.
Frequently asked questions
Does the Mini Pro Adaptive need a power supply?
No. Actuation is fully automatic and thermal: when the temperature inside the enclosure rises past 57°C the quartzoid bulb breaks and the agent is discharged, with no power supply or human intervention needed.
What volume does it protect?
The specified coverage volume is 0.29m³, using 300g of Fluoroketone (FK-5-1-12) clean agent.
Can it be connected to a fire alarm panel?
It has a pressure monitoring port, so it can be made monitorable with an optional pressure switch and connected to a fire alarm system, building management system or standalone sounder/beacon.
