Ceasefire Automatic Mini Intuitive SS Stored Pressure Red (Thermal bulb of 57C) (CF-001345A)
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
- Fully automatic detection, actuation and suppression
- Mechanical release: no power supply needed
- Clean agent FK-5-1-12 leaves no residue and will not damage electronics
- For Class A, B, C and electrically started fires
- Fluoroketone falls outside the F-Gas Regulations
- Magnetic Bourdon tube pressure gauge
Product details

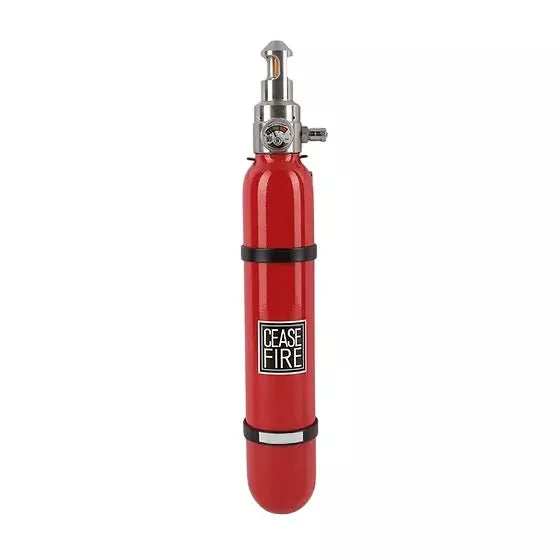

The Ceasefire Mini Intuitive CF-001345A is a 400g automatic micro-environment fire suppression unit filled with the clean agent Fluoroketone (FK-5-1-12), in a red stainless steel shell with a 57°C quartzoid bulb. It is placed inside, or fixed to the inner wall of, a small enclosed space such as a server cabinet or fuse box and protects it from within: when the bulb reaches its rated temperature it breaks and the agent discharges automatically, with no power supply or human intervention. FK is a cold gas that extinguishes fire by absorbing heat, and leaves no residue.
Key features
- Fully automatic detection, actuation and suppression
- Mechanical release: no power supply needed
- Clean agent FK-5-1-12 leaves no residue and will not damage electronics
- For Class A, B, C and electrically started fires
- Fluoroketone falls outside the F-Gas Regulations
- Magnetic Bourdon tube pressure gauge
- Stainless steel 316L shell
Technical specifications
- Product code: CF-001345A
- Agent: Fluoroketone (FK-5-1-12), stored pressure
- Capacity: 400g
- Actuation temperature: 57°C
- Minimum discharge time: 1 to 3 seconds
- Discharge fitting: Direct nozzle
- Coverage volume: 0.520m³
- Filled weight: Approx. 1.25kg
- Shell: Stainless steel 316L (1.4435), minimum wall thickness 1.2mm, red RAL 3000
- Shell diameter: 50mm
- Height: Approx. 331mm
- Service pressure: 10 / 12 bar
- Test pressure: 35 bar
- Warranty: 5 years
- Certification: PED, UKCA-PED, BSI tested
Datasheets & documents
No datasheet is online for this product yet. Ask us and we will email it to you.
