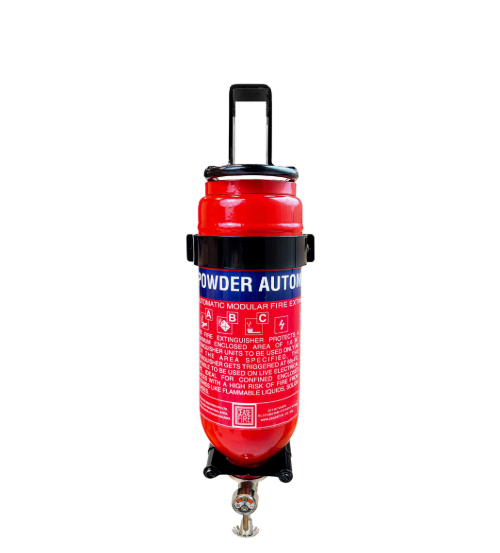

Ceasefire 1 kg ABC Powder Automatic M Series Wall Mounted MS Stored Pressure Red (CF-001401C)

The Ceasefire CF-001401C is a 1kg wall mounted automatic extinguisher from the M-Series range, filled with ABC dry powder (MAP50) in a red mild steel cylinder. It is fitted with a sprinkler-style discharge head with a 79°C quartzoid bulb and a non-return valve (NRV). When the bulb reaches its rated temperature it breaks and the powder discharges automatically, giving round-the-clock protection to areas with little or no human traffic.

M-Series units can also be actuated electrically by adding a Metron actuator and connecting them to detectors via a control panel as part of a total flooding system. A pressure port allows the unit to be made monitorable with an optional pressure switch.

Key features

• Automatic thermal actuation via a 79°C quartzoid bulb
• Optional electrical actuation with a Metron actuator
• Pressure port for optional pressure switch monitoring
• ABC dry powder for Class A, B, C and electrically started fires
• Supplied with a mounting bracket for direct wall installation
• 5 year warranty

Technical specifications

• Product code: CF-001401C
• Agent: ABC dry powder MAP50, stored pressure
• Net contents: 1kg
• Gross weight: Approx. 1.90kg
• Height: Approx. 370mm
• Shell diameter: 86mm
• Actuation temperature: 79°C ±4°C
• Discharge fitting: Sprinkler with quartzoid bulb head
• Minimum discharge time: 1 second
• Coverage area: 1.5m²
• Installation height: 0.8m
• Working pressure: 15 bar
• Hydrostatic test pressure: 30 bar
• Body thickness: 1.4mm
• Operating temperature: -30°C to +60°C
• Certification: PED, UKCA-PED, CE marked
