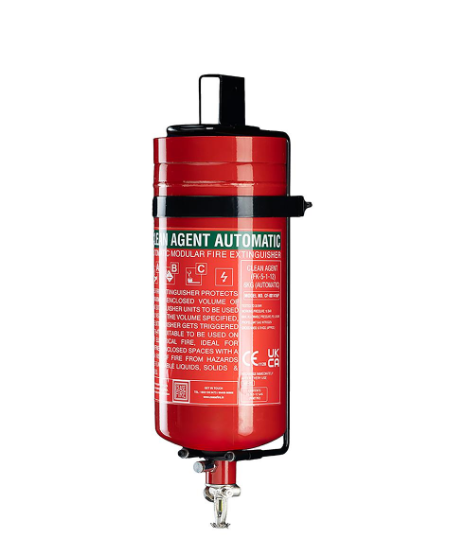

The Ceasefire CF-001415C is a 4kg wall mounted automatic extinguisher from the M-Series range, filled with the clean agent Fluoroketone (FK-5-1-12) in a red mild steel cylinder. It is fitted with a sprinkler-style discharge head with a 79°C quartzoid bulb and a non-return valve (NRV). When the bulb reaches its rated temperature it breaks and the agent discharges automatically, with no power supply or human intervention needed.
M-Series units can also be actuated electrically by adding a Metron actuator and connecting them to detectors via a control panel, so several units can work together as a total flooding system. A pressure port allows the unit to be made monitorable with an optional pressure switch.
Key features
- Automatic thermal actuation via a 79°C quartzoid bulb
- Optional electrical actuation with a Metron actuator
- Pressure port for optional pressure switch monitoring
- Clean agent: no residue, safe on electronic equipment
- Fluoroketone has a GWP of less than 1, zero ODP, and is outside the scope of the F-Gas Regulations
- Supplied with a mounting bracket for direct wall installation
- 5 year warranty
Technical specifications
-
Product code: CF-001415C
-
Agent: Fluoroketone (FK-5-1-12), stored pressure
-
Net contents: 4kg
-
Gross weight: Approx. 6.05kg
-
Height: Approx. 493mm
-
Shell diameter: 140mm
-
Actuation temperature: 79°C ±4°C
-
Discharge fitting: Sprinkler with quartzoid bulb head
-
Minimum discharge time: 2 seconds
-
Single volume coverage: 3.16m³ minimum, 5.7m³ maximum
-
Concentration at maximum volume: 4.5% (v/kg)
-
Working pressure: 10 bar
-
Hydrostatic test pressure: 30 bar
-
Body thickness: 1.2mm
-
Operating temperature: -30°C to +60°C
-
Certification: PED, UKCA-PED, CE marked
