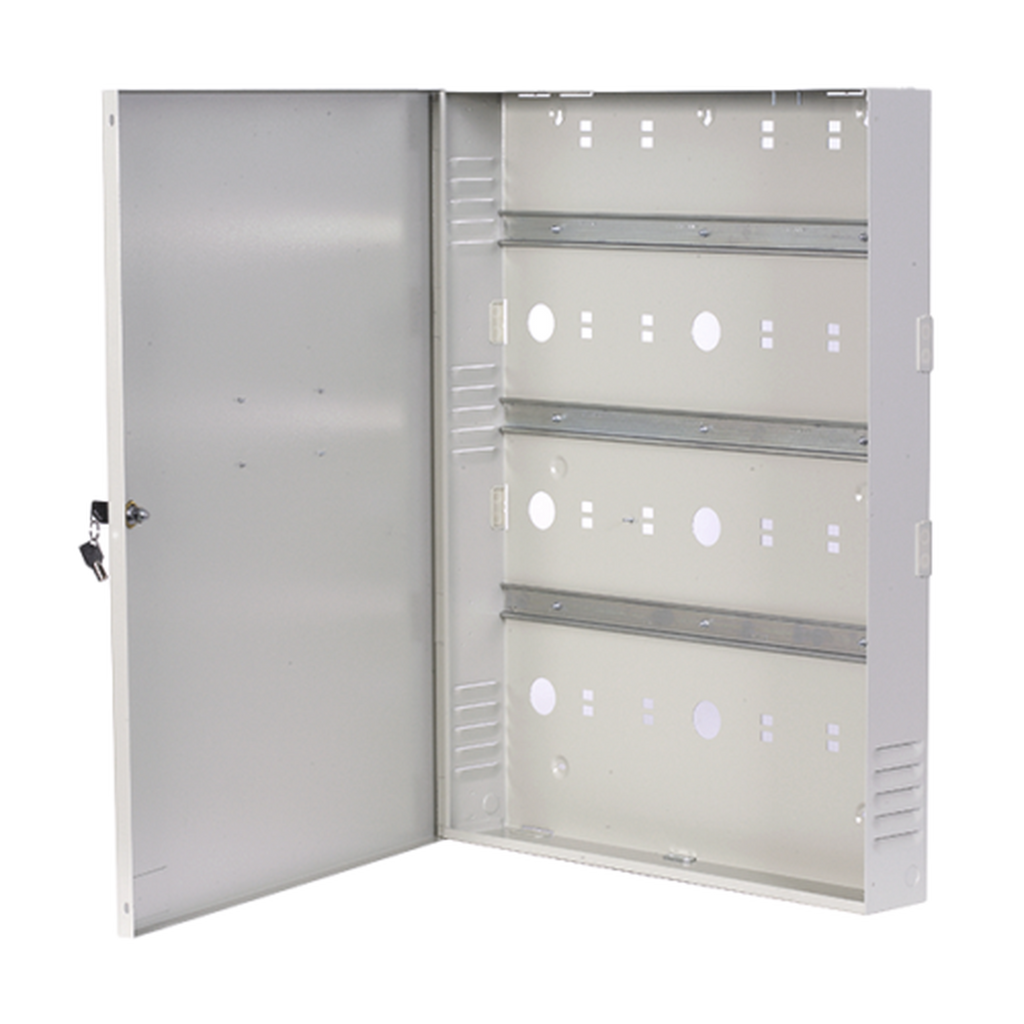

The Comelit PAC 10032 is a 6-way lockable steel enclosure with DIN rail, for housing DIN-mounted PAC access controllers. It has 3 rows of DIN rail with space for a backup battery and charging equipment (not included), and multiple trunking entry points on all sides for tidy cable management. The enclosure measures 590 x 770 x 120 mm.
Key features
- Lockable, supplied with keys
- 3 rows of standard top-hat DIN rail
- Space for backup battery and charging equipment (not included)
- Fixing point for a tamper switch (not included)
- Earthing points and lead supplied
- Hinged door opens more than 180°; vented on both sides
Technical specifications
- Part number: 10032
- Material: mild steel 18 SWG, powder coated
- DIN rail: 3 rows, standard top hat (35 x 7.5 mm)
- Trunking entry points: 40 x 20 mm; 4 on the top edge, 2 each on left, right and bottom
- Dimensions: 590 x 770 x 120 mm (W x H x D)
- Standards: UKCA, CE
