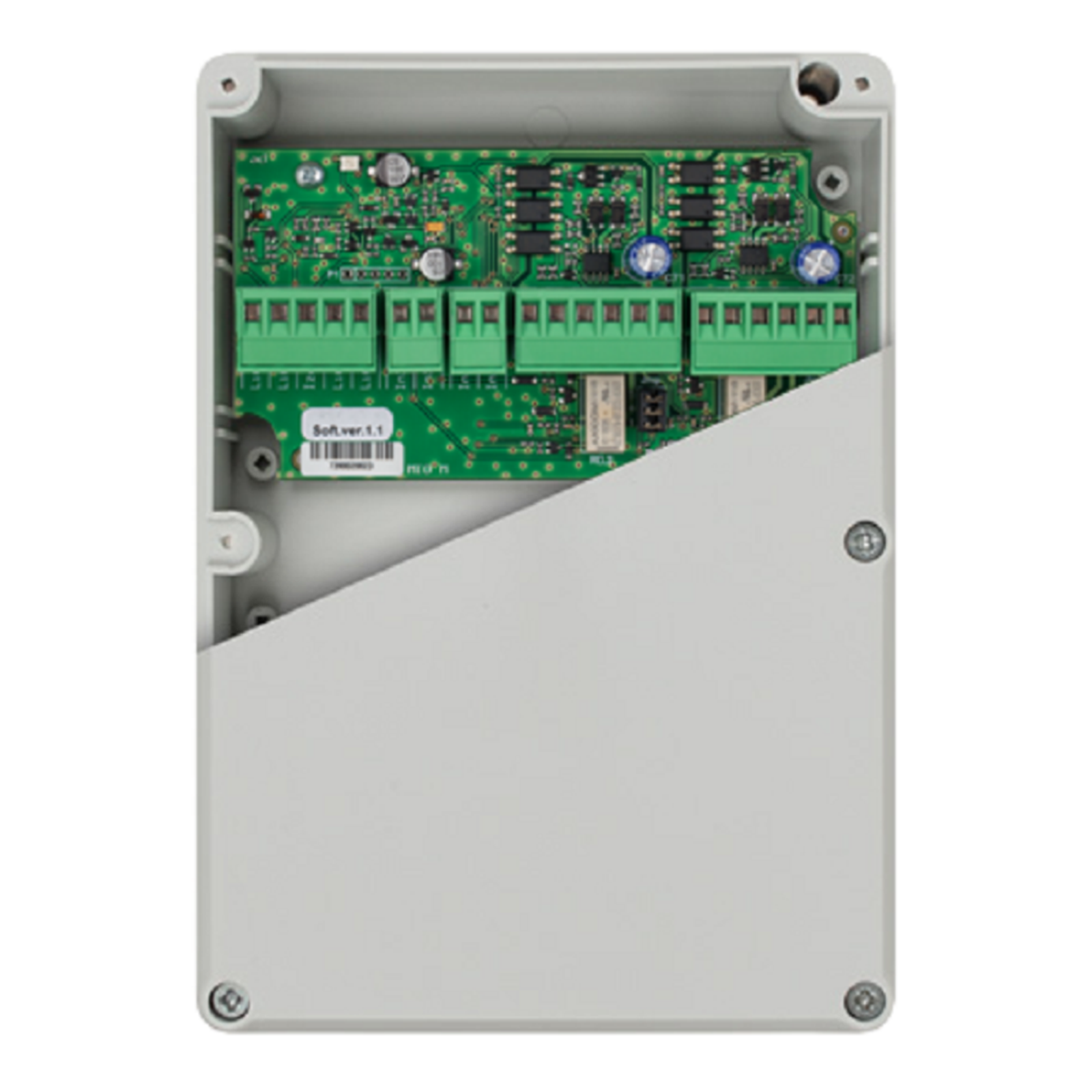

The addressed module 41IOM122XL, with integrated on-board isolator, controls two balanced inputs and two supervised or relay outputs, depending on the position of the 2 jumpers inside the module. It is powered from the loop and is controlled by the control panel by means of the communication protocol. This module is supplied in a plastic container suitable for surface mounting, with increased dimensions to make input and output wiring easier. Box dimensions (mm) 178 x 128 x 58. IP55 protection rating. Approved to EN54-17 and EN 54-18
