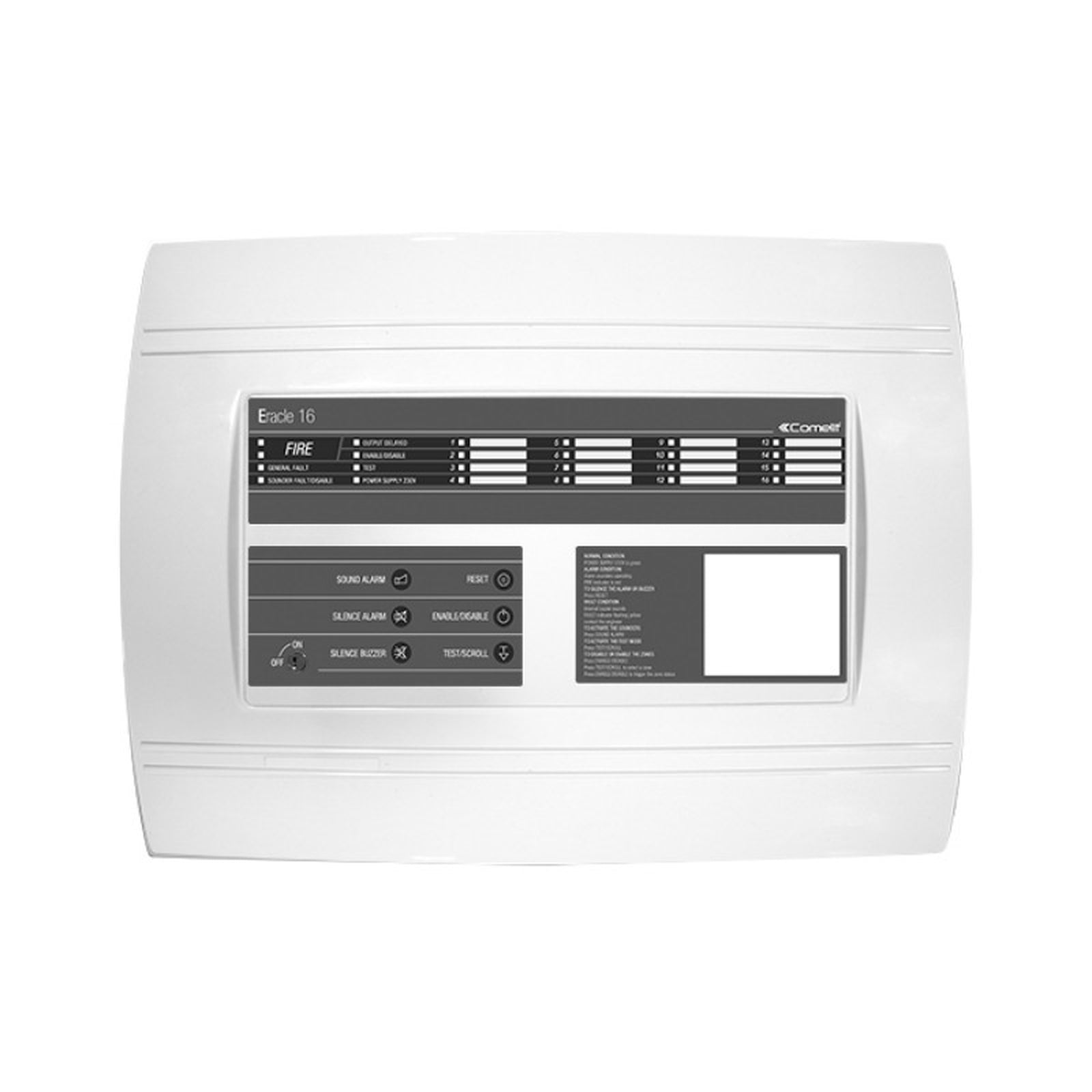

Eracle 8-16 is a conventional fire detection panel certified to EN54-2 and EN54-4 with 8 zones expandable up to 16 with 4 zones card art. 43ECZ020. The panel is provided with robust plastic cabinet and with LED display. It shows fire and faults alarm for each detection zone plus general information such as alarm, fault, sounder disable, zones disable, test, power. Commands available are test, sounder silence, reset, walk test. Access protected by key. 8 relays and 4 outputs for sirens cards can be installed as optional. If needed a LOG EVENT module can be installed to record up to 510 events. It is possible to connect another panel as repeater (SLAVE) to the MASTER to remote the indications up to 1Km.
