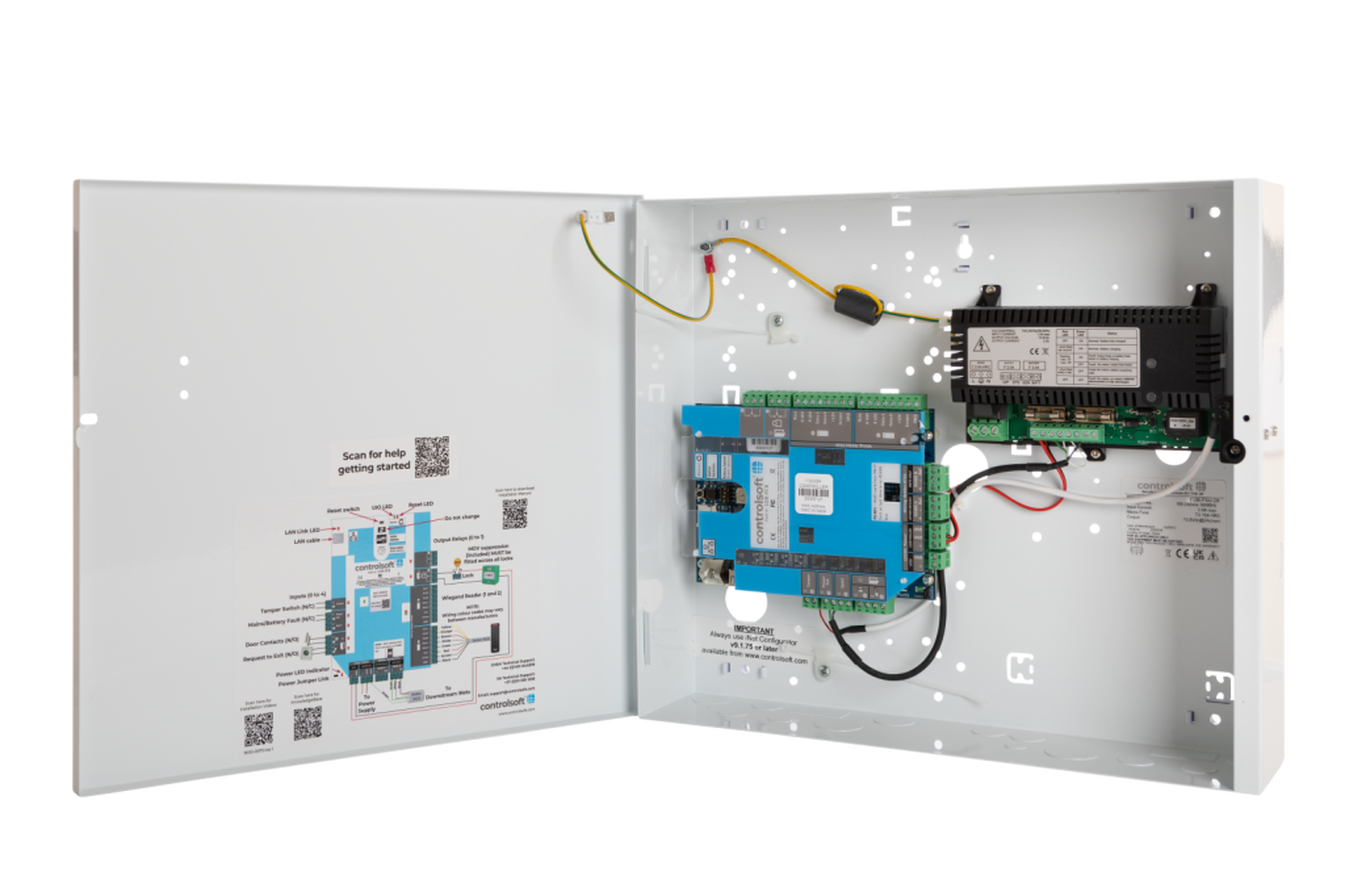

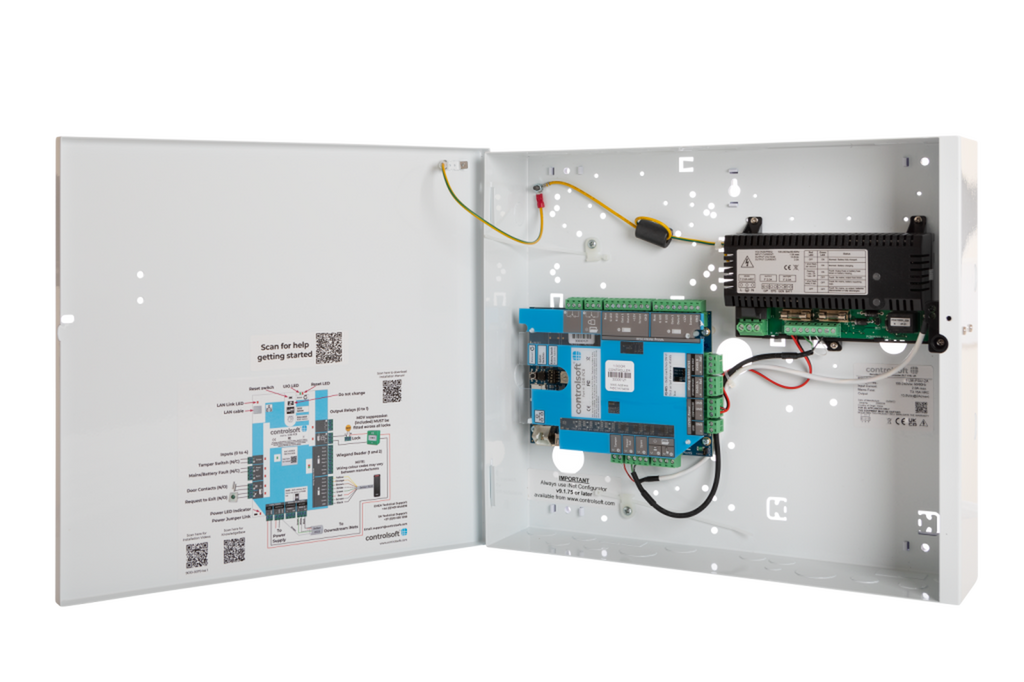

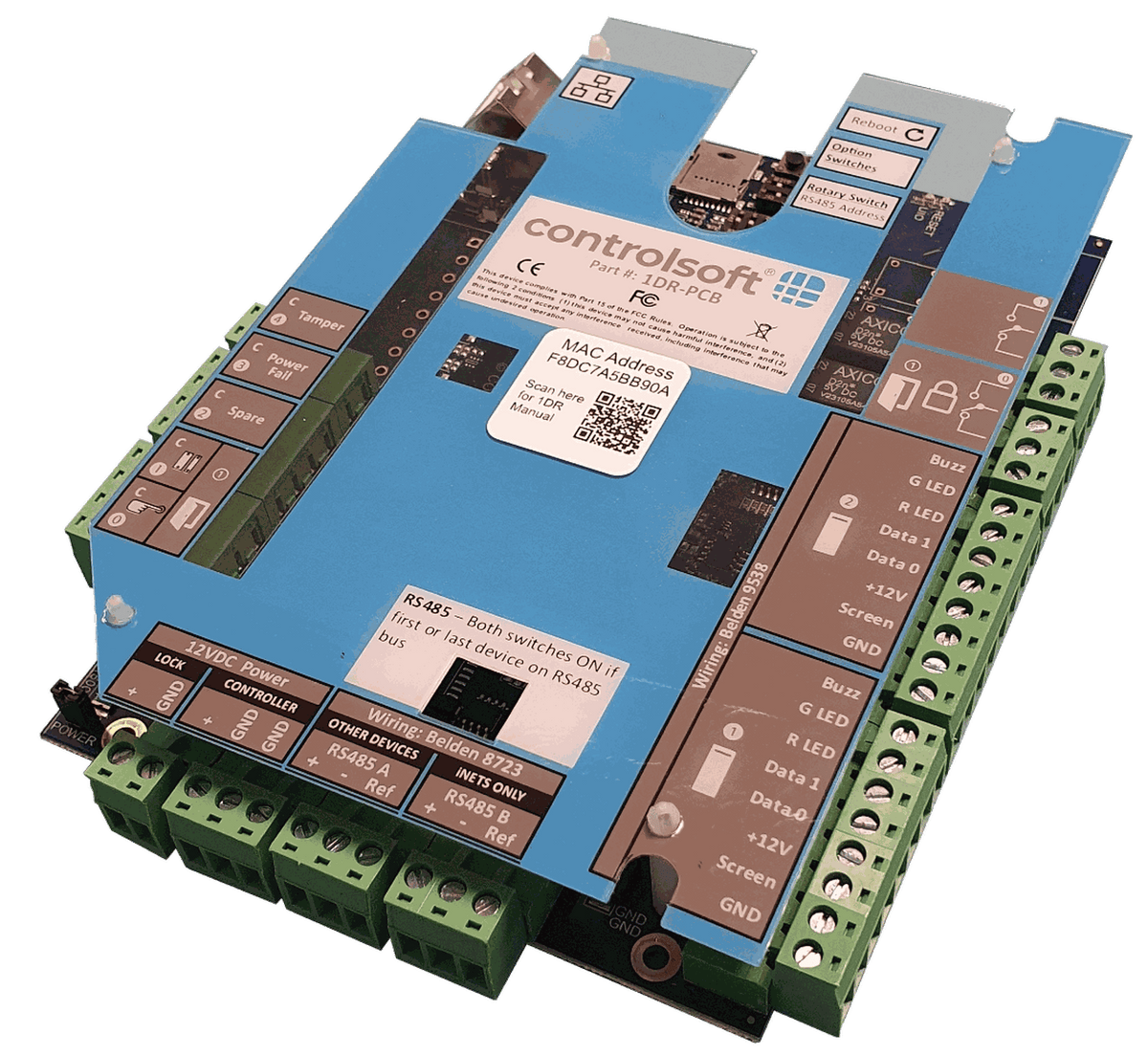

The iNet 1DR is a single door access control unit supporting up to two readers (In/Out). The controller is configured with Controlsoft’s Identity Access software. The iNet 1DR has onboard TCP/IP for connection to a network or it can be connected to other iNet One Door or Two Door control units using a multi-drop / daisychain RS485 network. Each iNet 1DR has fully distributed intelligence to ensure that it continues to work normally in the event of communications failure to the network. Features & Benefits Controller for One Door with IN and OUT Readers Battery-backed memory for 200,000 cardholders and 250,000 events Support for Wiegand and OSDP (RS485) Readers Five Programmable Inputs for Exit Button, Door Contact, Fire, Power / Battery Fault and Tamper Two Programmable Output Relays Two Reader Ports (Wiegand) Auxiliary Power Output for Lock etc. Up to 10 HID Site Codes (FAC) Large removable terminal blocks for ease of installation Fully compatible with v2 and v3 iNet Controllers for system upgrades Boxed versions with power supply and Lid Tamper 3 Year Warranty
