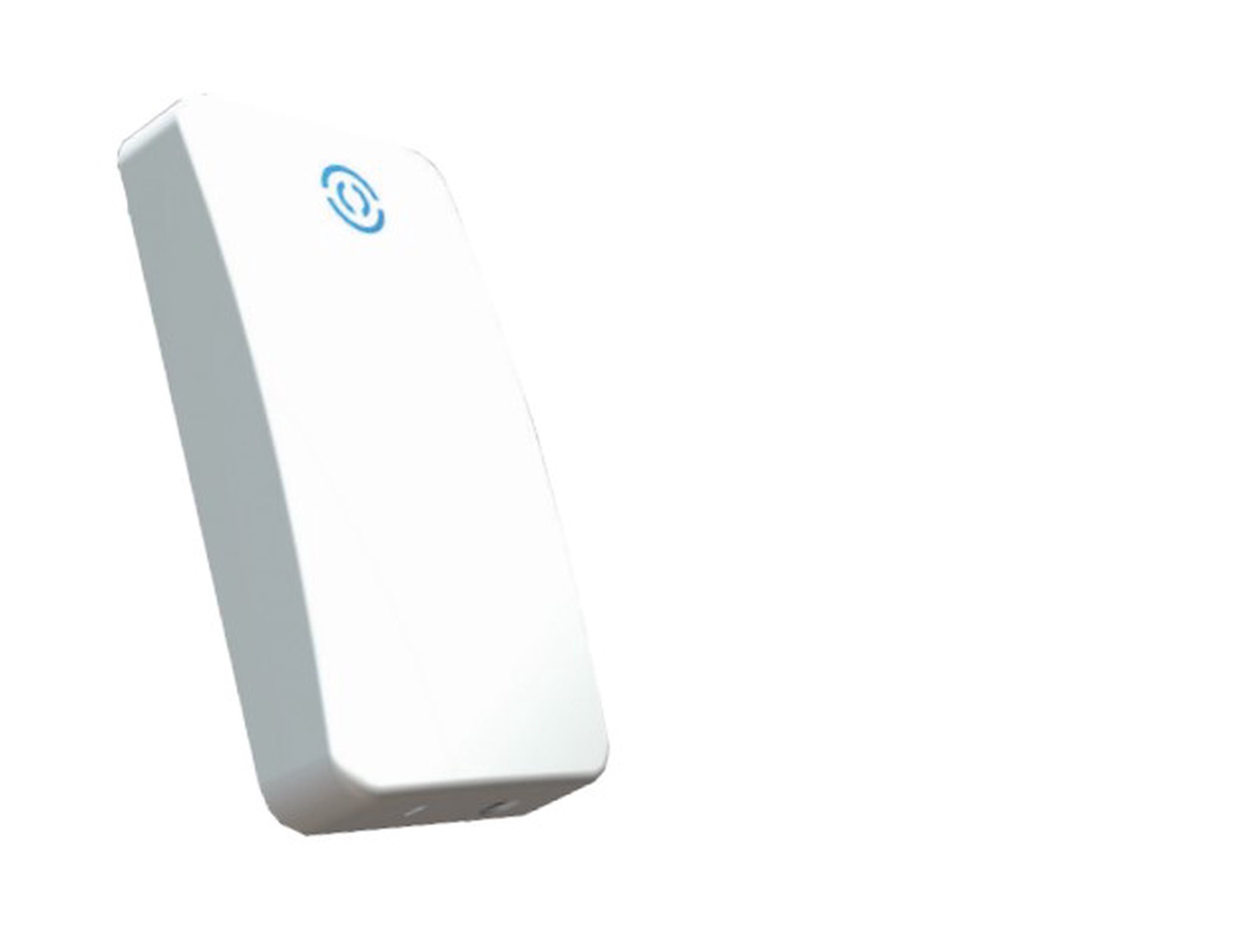

Controlsoft RX4 Mullion Proximity Reader 125kHz White

SKU: RX-400-WHBrand: Controlsoft
4.6store rating from 122 reviews
Out of stock Qty Delivery
All locations0Lead time 2 to 6 weeks, estimate only
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price$181.00
217.20 inc. VAT181.00 ex VAT
Stock:
Out of stock. Lead time 2 to 6 weeks, estimate only
Delivery
Out of stock
Lead time 2 to 6 weeks, estimate only
Collect in Poole
Not stocked in Poole
Delivery only
Controlsoft RX4 Mullion Proximity Reader 125kHz White $181.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • 125kHz proximity reader (HID Prox and EM variants)
  • Slim mullion profile: 96 x 52 x 21mm
  • Fully encapsulated electronics, IP65
  • RGB LED indication and integral sounder
  • Wiegand output
  • Read range up to 10cm

Product details

The Controlsoft RX4 (RX-400) is a slim mullion proximity reader for 125kHz credentials. It is mounted directly on the wall or frame and connects to an access control panel using a Wiegand output. It reads HID Prox and EM variants, as well as other widely used 125kHz formats such as Kantech, Farpointe, AWID and CASI compatible credentials.

The electronics are fully encapsulated in a moulded polycarbonate housing rated to IP65, so the reader suits both indoor and outdoor use. An RGB LED and integral sounder give feedback to the user.

Key features

  • 125kHz proximity reader (HID Prox and EM variants)
  • Slim mullion profile: 96 x 52 x 21mm
  • Fully encapsulated electronics, IP65
  • RGB LED indication and integral sounder
  • Wiegand output
  • Read range up to 10cm
  • Indoor or outdoor use
  • 5 year warranty

Technical specifications

  • Part number: RX-400
  • Frequency: 125kHz
  • Supply: 5–12V DC, 115mA
  • Output: Wiegand
  • Read range: up to 10cm
  • Dimensions: 96 x 52 x 21mm
  • Housing: moulded polycarbonate
  • Ingress protection: IP65
  • Operating temperature: -35°C to +66°C
  • Termination: screw terminals
  • Warranty: 5 years

Datasheets & documents

No datasheet is online for this product yet. Ask us and we will email it to you.
