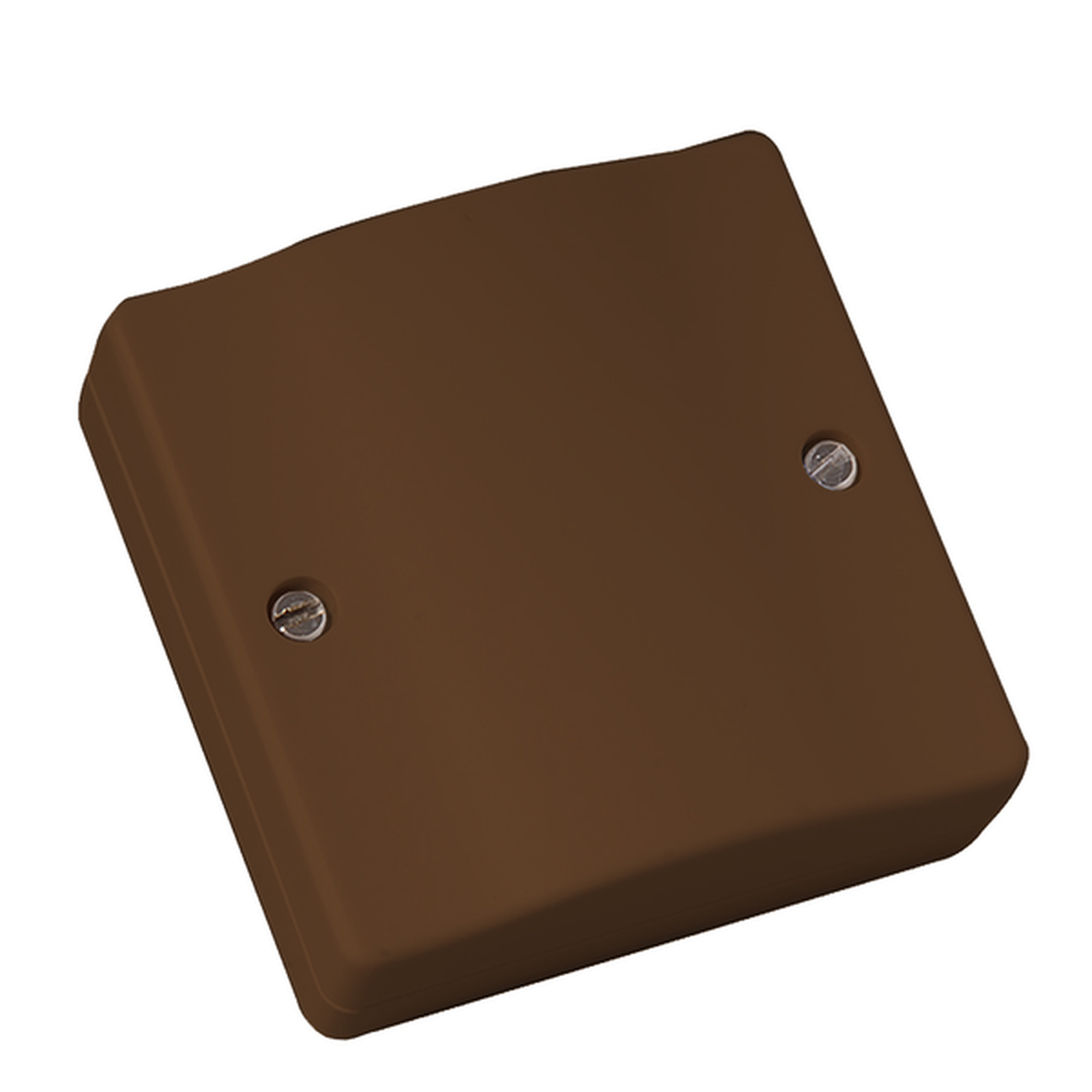

The CQR JB727/BR is a brown 12-way junction box for intruder alarm wiring. It has a microswitch tamper and an optional base tamper, and it is rated for Grade 3 systems.
Key features
- 12 connector terminals plus 2 tamper terminals
- Microswitch tamper with optional base tamper
- Security Grade 3, Environmental Class II
- ABS housing, brown finish
Technical specifications
- Model: JB727/BR
- Security grade: 3
- Environmental class: II
- Connection: screw terminals
- Connector terminals: 12
- Tamper terminals: 2
- Dimensions (H × W × D): 65 × 24 × 65 mm
- Colour: brown
- Material: ABS
- Standards: EN50131-1, EN50130-5
