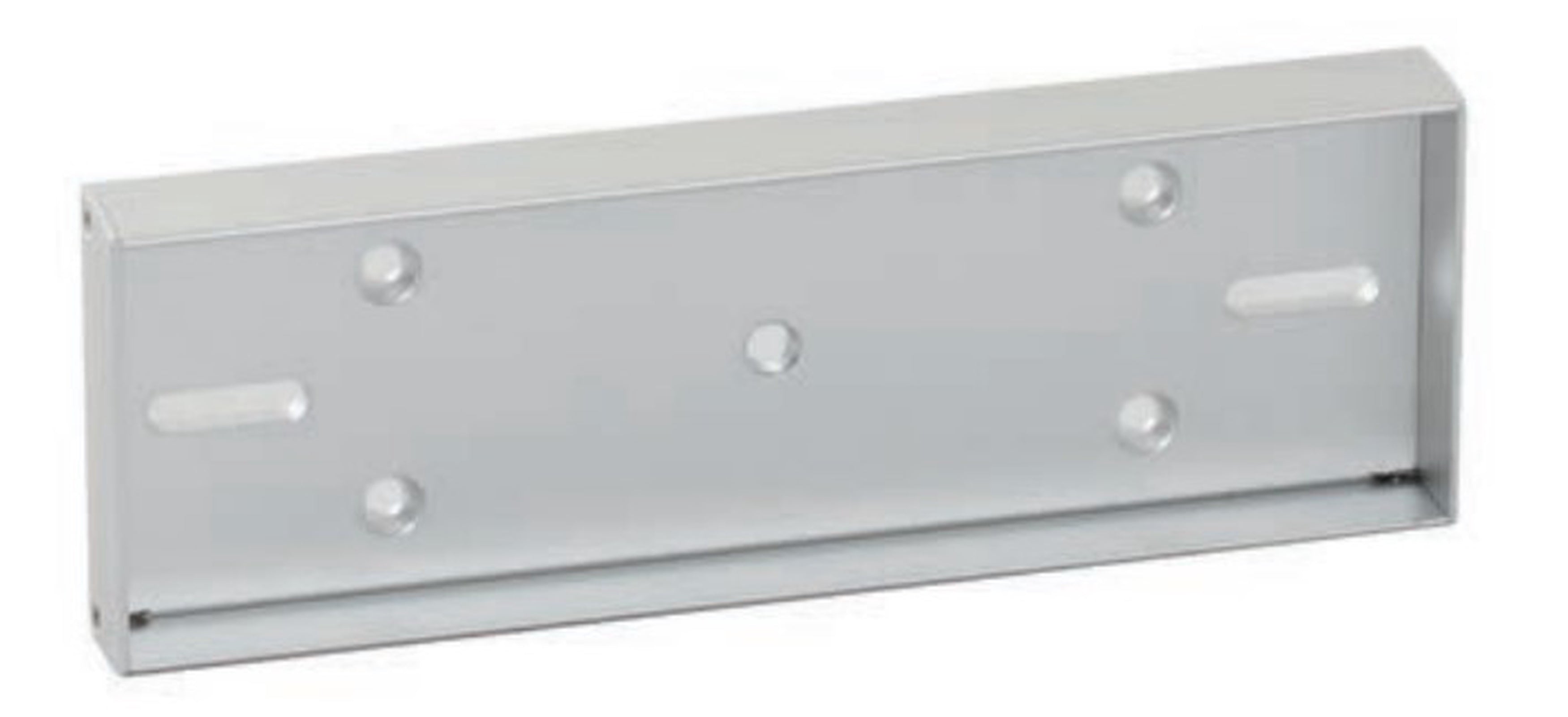

The CQR STD/AH is the surface armature plate housing for Deedlock by CQR Standard electro-magnetic locks. It holds the armature plate so that it can be surface mounted on the door. Deedlock by CQR electro-magnetic locks are tested to the TS010 performance standard and are used with access control and audio or video door entry systems.
Key features
- Armature plate housing for Deedlock Standard electro-magnetic locks
- Fire tested to EN 1634-1
- Fire rated at E30 and E60
- Satin anodised aluminium finish
Technical specifications
- Part number: STD/AH
- Range: Deedlock Standard
- Bracket type: armature plate housing (listed by CQR as the Standard range surface armature plate)
- Size: L194 x H67 x D19.8mm
- Finish: satin anodised aluminium
- Fire test: EN 1634-1; fire rating E30 and E60
- TS010 Grade 3; EMC; CE marked
- Suits Standard magnets with armature size L190 x H60 x D15.3mm
