Dantech DA8WS 8-Way Self Adhesive PCB Power Splitter
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 18 | 1 to 3 working days |
- Eight individually fused outputs
- PCB + 350mm fly lead
- Made in Britain
Frequently bought together
Product details

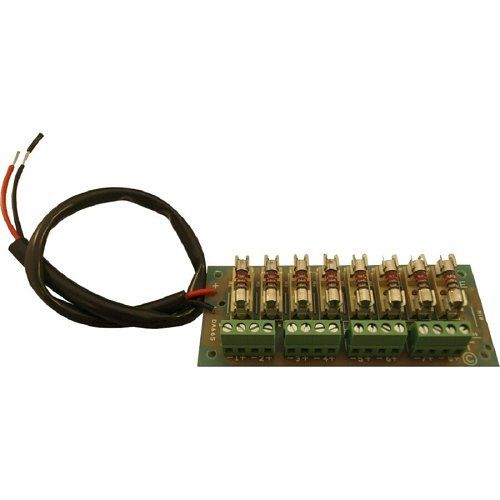

Convert a single output to eight outputs with this eight way fused distribution board. These boards have 8 individually fused outputs, with terminal blocks. Used in CCTV or access control application where the installer needs to split the available current.
Can be used in either 12V DC or 24V DC working; maximum of 8A. Variations of this product are available on request, please contact us with your requirements to find out more.
Ordering information
PCB + 350mm fly lead
Installing this distribution board is easy with the pre-installed 350mm red & black wires.
Individually fused outputs
Each output is independently fuse protected, the removable front plate gives easy access to the output fuses. The fused outputs can accommodate any 20 x 5mm fuses. As standard, these units are fitted with Quick-blow Glass Fuses.
- Eight individually fused outputs
- PCB + 350mm fly lead
- Made in Britain
Specifications
| Application/Usage | Access Control |
|---|---|
| Depth | 20.00mm |
| Device Supported | CCTV System |
| Features | Self-adhesive |
| Height | 48.00mm |
| Input Voltage | 24V DC |
| Limited Warranty | 5-Year |
| Output Current | 1.0000A |
| Output Voltage | 24V |
| Product Type | Distribution Terminal |
| Weight | 75.00g |
| Width | 117.00mm |
| Colour | Red |
| Country of Origin | GB |
| Manufacturer | Dantech Electronic Engineering |
| RoHS Compliant | Compliant |
| Sector | Access Control |
| WEEE Compliant | Out of Scope |
