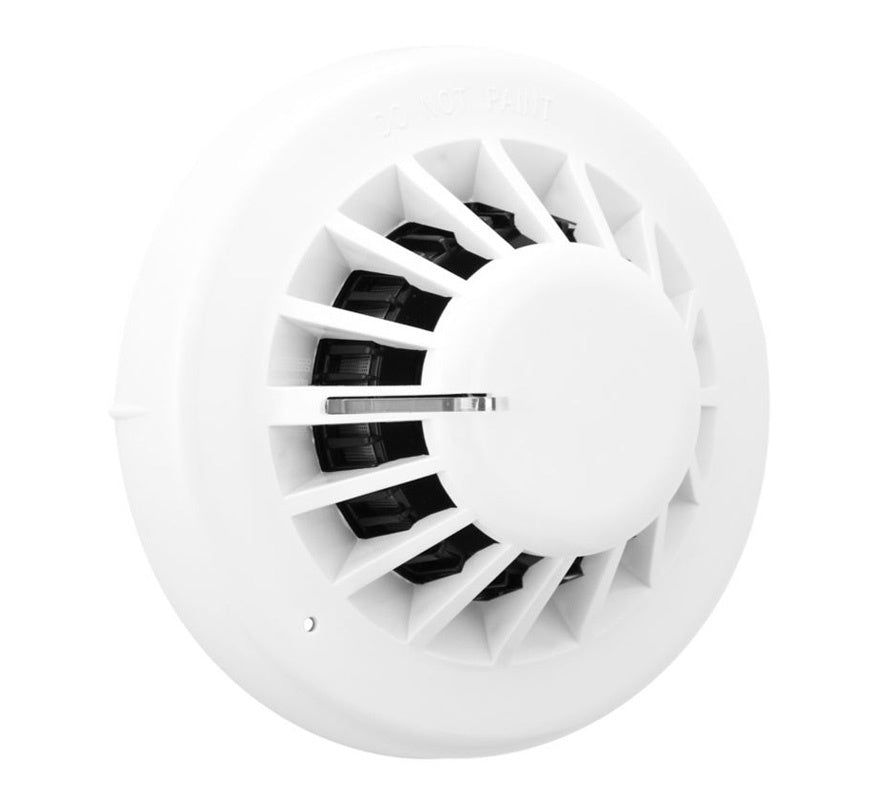

The Eaton BiWire Ultra EFBW5IN1DET is a 5 in 1 multi-mode detector for Eaton's BiWire two-wire fire alarm system. Using the four-position switch on the back of the detector it can be set to work as an optical smoke detector, a photo-thermal detector or one of three heat detectors (rate of rise and two fixed temperature settings), and it is certified for use in all five modes. It fits Eaton's standard conventional base (EFXN520, supplied separately).
Key features
- Five detection modes in one detector: optical smoke, photo-thermal, rate of rise, fixed heat 77°C and fixed heat 92°C
- Approved to EN 54-5 and EN 54-7
- 360° indicator LED using lightpipe technology
- Red LED for alarm; amber LED for chamber fault or drift compensation limit
- Low profile design, quick and simple to install
- Positive click indication when correctly located in the base
- Optional locking facility to prevent removal without a special tool
Technical specifications
- Standards: EN 54-5 and EN 54-7
- Operating voltage: 15-30 V DC
- Standby current: 30 µA max.
- Start-up current: 340 µA max.
- Alarm current: 25 mA max.
- Area coverage (subject to local standards): 100 m² in optical and photo-thermal modes; 50 m² in heat modes
- Heat classes: photo-thermal A2S (60°C); rate of rise A1R (60°C); fixed heat BS (77°C); fixed heat CS (92°C)
- Mounting: ceiling in open areas, surface mount on EFXN520 base
- System wiring: 2 core
- Operating temperature: -20°C to +75°C (dependent on setting)
- Humidity: 0 to 93%, non-condensing
- Material: PC/ABS, white
- Dimensions (dia. x depth): 104 x 42 mm excluding base; 104 x 55 mm including base
- Ingress protection: IP40
