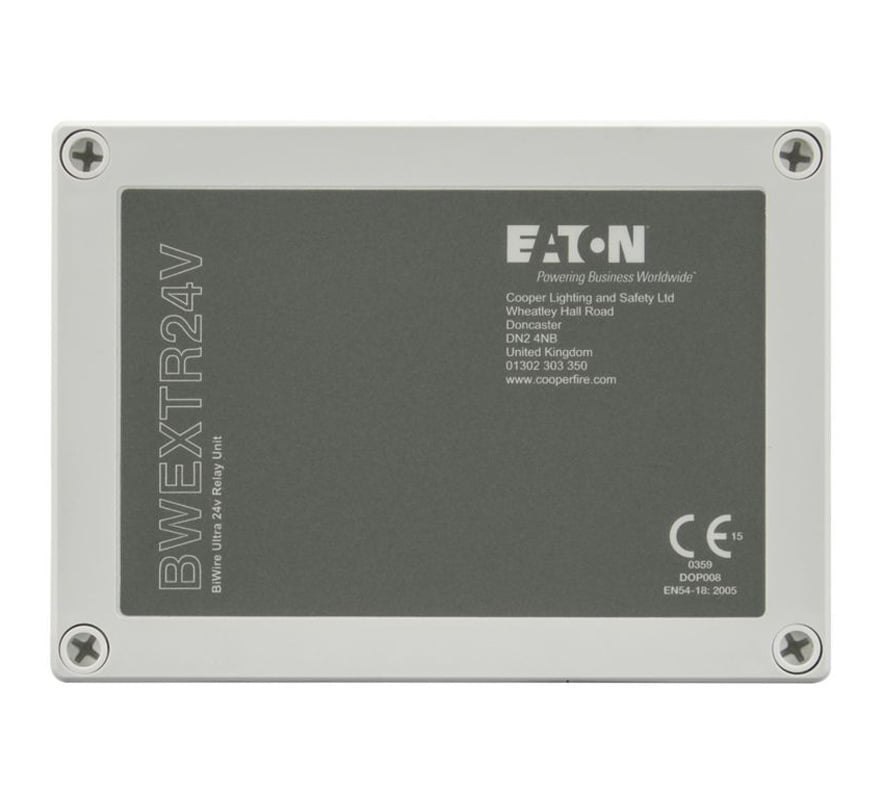

The Eaton BWEXTR24V is a 24 V external relay module for Eaton BiWire two-wire fire alarm systems.
It is a zonal relay unit fitted on a BiWire system to provide a relay output, and is certified to EN 54-18 as an input/output device. Note that if the panel's class change input is used, zonal relay units change state and need a panel reset to return to quiescent mode.
Key features
- External relay unit for Eaton BiWire systems
- Certified to EN 54-18 (input/output devices)
- Top cable entry
- Clear white ABS enclosure
- 230 V version also available (BWEXTR230V)
Technical specifications
- Part number: BWEXTR24V (External Relay 24V)
- System: Eaton BiWire
- Standard: EN 54-18
- Dimensions (H x W x D): 130 x 181 x 59.5 mm
- Weight: 0.482 kg
- Not DIN-rail mountable
