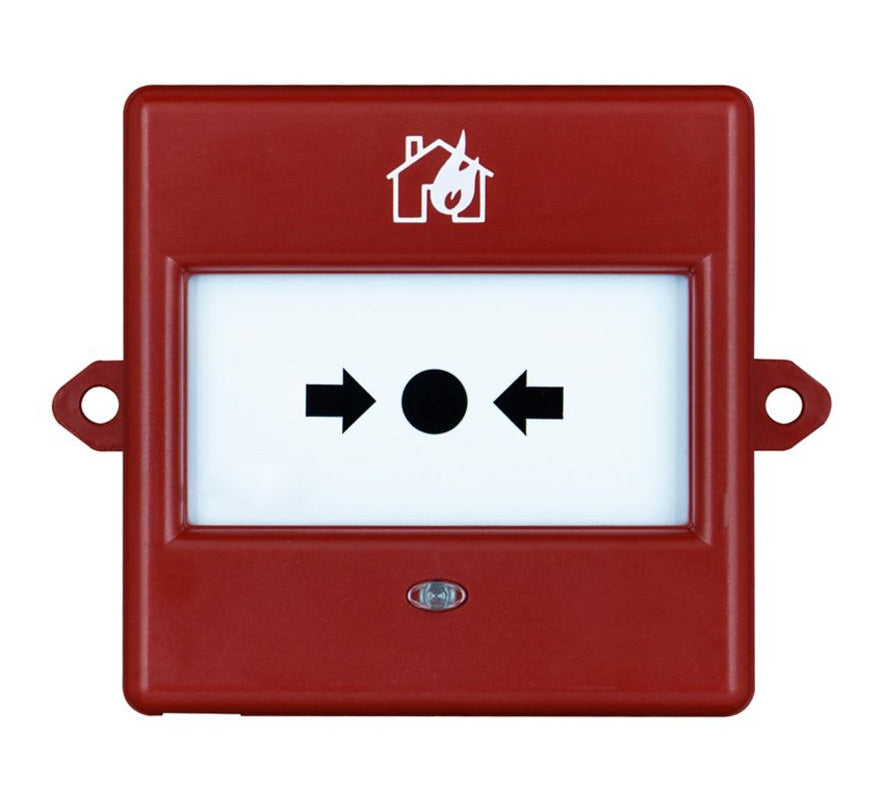

The Eaton EF203BWCPWP is a weatherproof manual call point for the Eaton BiWire Ultra range of two-wire fire alarm systems. Rated IP66 and certified to EN 54-11, it is suitable for outdoor use.
It is supplied as standard with a frangible glass element and a test key. The fast-fit front cover locks in place and can only be removed with the key, which also lets the engineer test the call point by simulating activation without breaking the glass.
Key features
- Weatherproof IP66 construction for outdoor use
- Fast-fit self-locking front cover, removed only with the supplied key
- Dual-function test key for testing and cover removal, inserted at the bottom for easy access beside door frames
- Heavy duty terminals with separate zone in and zone out connections
- Red LED indicator
- Accessories available: protective hinged cover (CXPC), resettable element kit (MBGREKIT), spare glasses (FX5G) and keys (MFBGKEY3)
Technical specifications
-
Catalogue number: EF203BWCPWP
-
Compatibility: Eaton BiWire Ultra fire systems
-
Standard: EN 54-11
-
Supply voltage: 18V to 35V DC
-
Standby current: Less than 22µA
-
Alarm current: 20mA
-
Cable size: 0.28mm² to 2.5mm²
-
Operating temperature: -25°C to +70°C (95% RH)
-
Material: ABS FR plastic, red
-
Ingress protection: IP66
-
Dimensions (H x W x D): 87 x 87 x 59mm
-
Weight: 0.2kg
