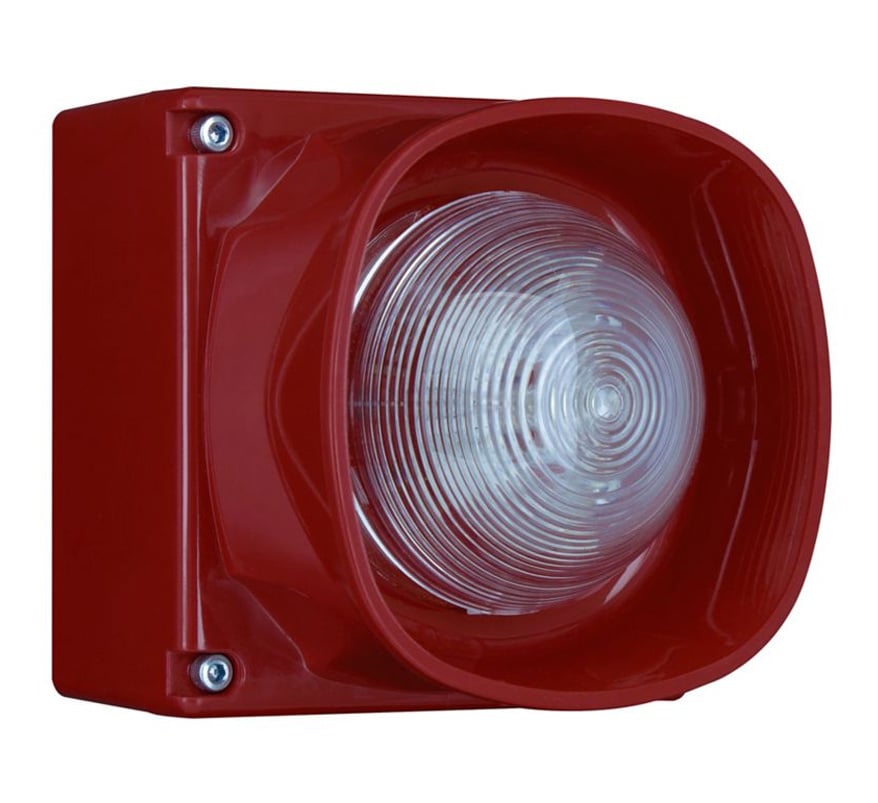

The Eaton EF009SBWP is a weatherproof wall-mounted sounder visual alarm device (VAD) for Eaton BiWire two-wire fire alarm systems.
Certified to EN 54-3 and EN 54-23, it combines a high-output sounder with a visual alarm beacon in an IP66 housing, suitable for open areas and outdoor use. Current BiWire devices are only compatible with Eaton BiWire Ultra and BiWire Flexi control panels.
Key features
- Sounder and EN 54-23 visual alarm device in one unit
- Weatherproof IP66 housing for outdoor use
- Certified to EN 54-3 and EN 54-23
- High sound output, suited to high-noise environments
- Rear cable entry
Technical specifications
- Part number: EF009SBWP (wall sounder VAD, weatherproof)
- System: Eaton BiWire
- Standards: EN 54-3, EN 54-23
- Ingress protection: IP66
- Dimensions (H x W x D): 110 x 110 x 99 mm
- Weight: 0.28 kg
- Housing: red ABS
