Eaton Cooper Intelligent Addressable Weatherproof Wall Sounder VAD (White Flash, Open Class) (CASB393WP)
SKU: CASB393WPBrand: Eaton
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Eaton Cooper Intelligent Addressable Weatherproof Wall Sounder VAD (White Flash, Open Class) (CASB393WP)
£117.85
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Open class EN 54-23 VAD with white flash
- Certified to EN 54-3 (sounders), EN 54-23 (visual alarms) and EN 54-17 (short-circuit isolators)
- Soft addressed on the loop
- Three volume levels, up to 100 dB
- 4 EN certified tones, programmable from the panel
- Low-current 0.5 Hz flash
Frequently bought together
Eaton
Eaton Cooper Sounder Cover Plates (Pack of 5) (CASC)
Sale price£3.30
Out of stock. Lead time 2 to 6 weeks, estimate only
Eaton
Eaton DET-2R-GB Two-Way Radio Break Glass Detector, 360° Acoustic Detection, (Replaces 739REUR-50)
Sale price£169.25
In stock
Eaton
Eaton DET-REXT-PIR30 Scantronic Outdoor Perimeter Radio PIR Detector
Sale price£265.30
In stockProduct details

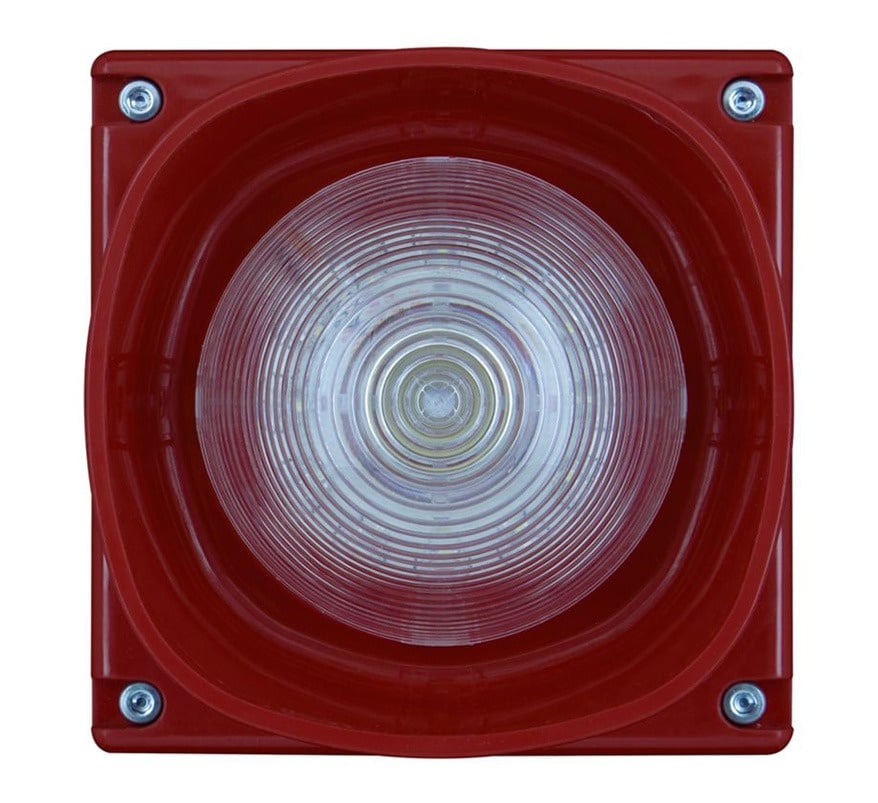

The Eaton Cooper CASB393WP is an intelligent addressable open class wall sounder visual alarm device (VAD), in a weatherproof IP66 version for Eaton intelligent addressable fire alarm systems. It combines the high sound output of Eaton's wall sounders with a stronger LED to meet EN 54-23, and gives a white flash only.
Open class functionality allows the VAD to be installed in open areas such as warehouses or airport terminals.
Key features
- Open class EN 54-23 VAD with white flash
- Certified to EN 54-3 (sounders), EN 54-23 (visual alarms) and EN 54-17 (short-circuit isolators)
- Soft addressed on the loop
- Three volume levels, up to 100 dB
- 4 EN certified tones, programmable from the panel
- Low-current 0.5 Hz flash
Technical specifications
- Part number: CASB393WP
- Nominal voltage: 18 to 28 V DC
- Sound output: 87 dB at less than 8.6 mA (low), 93 dB at less than 10 mA (medium), 100 dB at less than 11 mA (high)
- Sound frequency range: 0.5 to 1.2 kHz
- Flash rate: 0.5 Hz
- Flash colour: white
- Housing: ABS, red
- Ingress protection: IP66
- Operating temperature: −10°C to +55°C
- Humidity: 0 to 95% (non-condensing)
- Cable entry: rear
- Dimensions (H x W x D): 110 x 110 x 105 mm
- Weight: 0.32 kg
