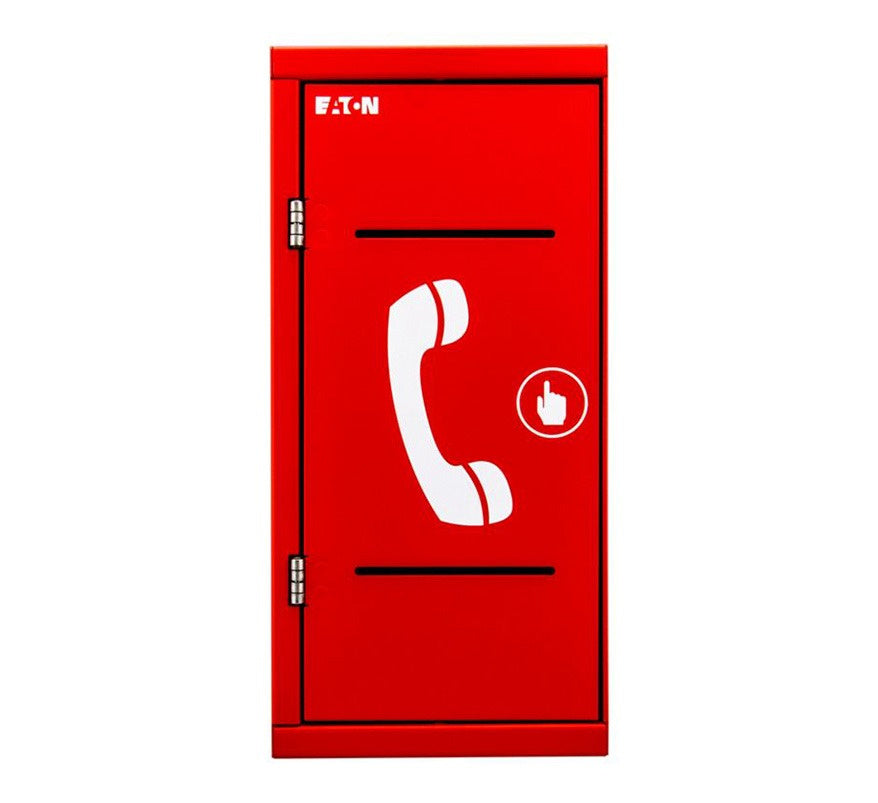

The Eaton VoCALL 16 TA16-RS is a red, surface mounted digital Type A outstation for the VoCALL 16 digital emergency voice communication system (EVCS). Type A outstations are handset-based fire telephones: lift the handset to call the panel, and the panel can dial the outstation number to call it.
It is soft addressed and connects on the VoCALL 16 4 core loop in any order with Type B and Emergency Assist Alarm outstations, with short circuit isolation to keep the rest of the loop working if a fault occurs. Digital audio with automatic volume control gives clear speech for firefighting and evacuation management.
Key features
- Digital Type A outstation for VoCALL 16 (MX16/NX16) systems
- Lift the handset to call the panel; bi-directional calling
- Soft addressed on the 4 core loop
- Integral short circuit isolation
- Digital audio with automatic volume control
- Red, surface mount; flush bezel (TA16-BEZ) available
Technical specifications
-
Catalogue number: TA16-RS
-
Power consumption: 0.65W
-
Dimensions (H x W x D): 320 x 152 x 114mm
-
Weight: 2.2kg
-
Operating temperature: -5°C to +40°C
-
Humidity: 0 to 95%, non-condensing
-
Ingress protection: IP3X
