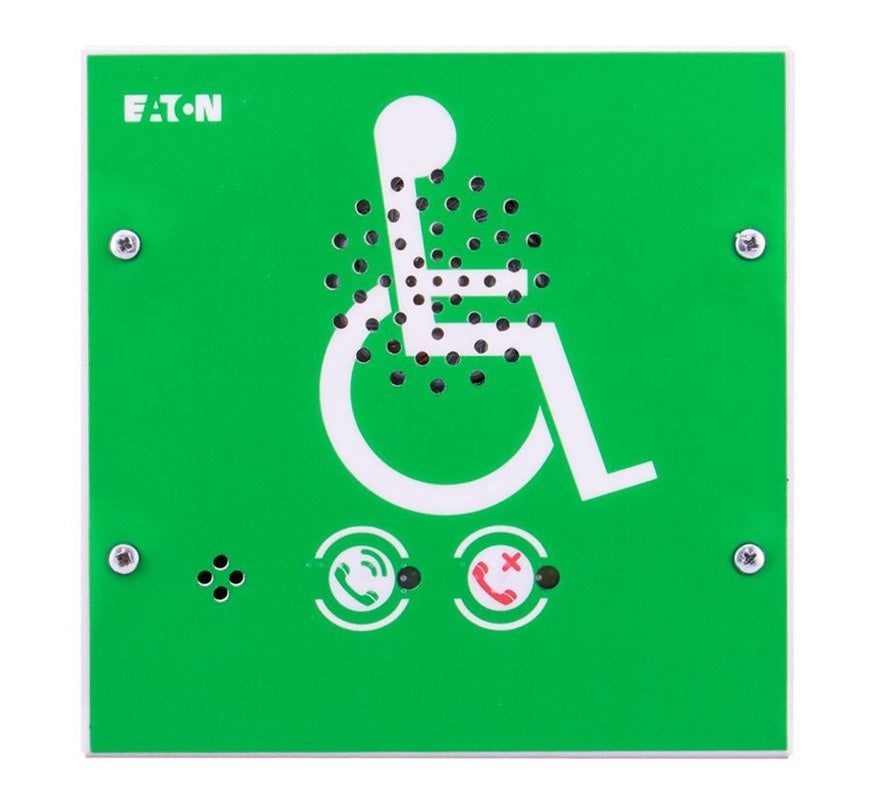

The Eaton VoCALL 16 TB16-GS is a green, surface mounted digital Type B outstation for the VoCALL 16 digital emergency voice communication system (EVCS). Type B outstations are used as disabled refuge call points: the user pushes the button to call the panel.
It is soft addressed and connects on the VoCALL 16 4 core loop in any order with Type A and Emergency Assist Alarm outstations, with short circuit isolation to keep the rest of the loop working if a fault occurs. Digital audio with automatic volume control gives clear communication, and loud-speak and listen-in are available from the panel.
Key features
- Digital Type B outstation for VoCALL 16 (MX16/NX16) systems
- Push-button call to the panel
- Loud-speak and listen-in facility
- Soft addressed on the 4 core loop
- Integral short circuit isolation
- Digital audio with automatic volume control
- Green, surface mount
Technical specifications
-
Catalogue number: TB16-GS
-
Power consumption: 0.65W
-
Dimensions (H x W x D): 132 x 132 x 57mm
-
Weight: 0.6kg
-
Operating temperature: -5°C to +40°C
-
Humidity: 0 to 95%, non-condensing
-
Ingress protection: IP3X
