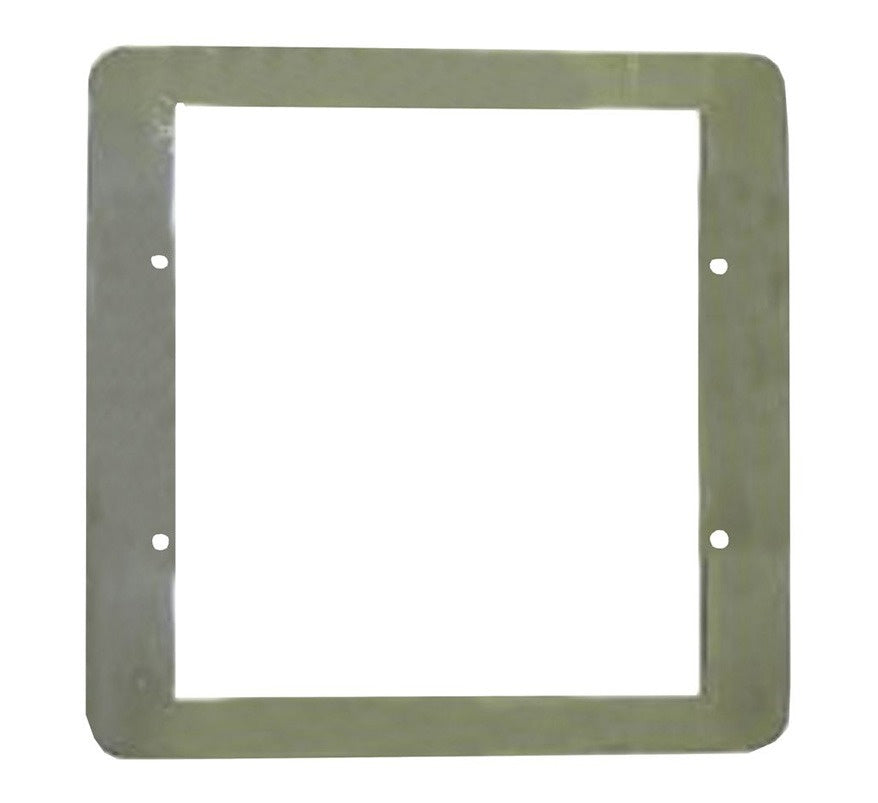

The Eaton VoCALL CFVCFHB is a stainless steel flush mounting bezel for use with any VoCALL analogue Type B outstation (CFVCSHF red, CFVCSHFG green or CFVCSHFSS stainless steel). It allows the Type B refuge outstation, which is normally surface mounted, to be flush mounted into the wall for a neater finish.
Type B outstations provide two-way voice communication from disabled refuges to the VoCALL master unit.
Key features
- Flush mounting bezel for all VoCALL analogue Type B outstations
- Stainless steel finish
- Wall mounting
Technical specifications
-
Catalogue number: CFVCFHB
-
Material: Stainless steel
-
Flush dimensions (H x W): 154 x 154mm
-
Flush cut-out: 140 x 140mm
-
Weight: 0.5kg
