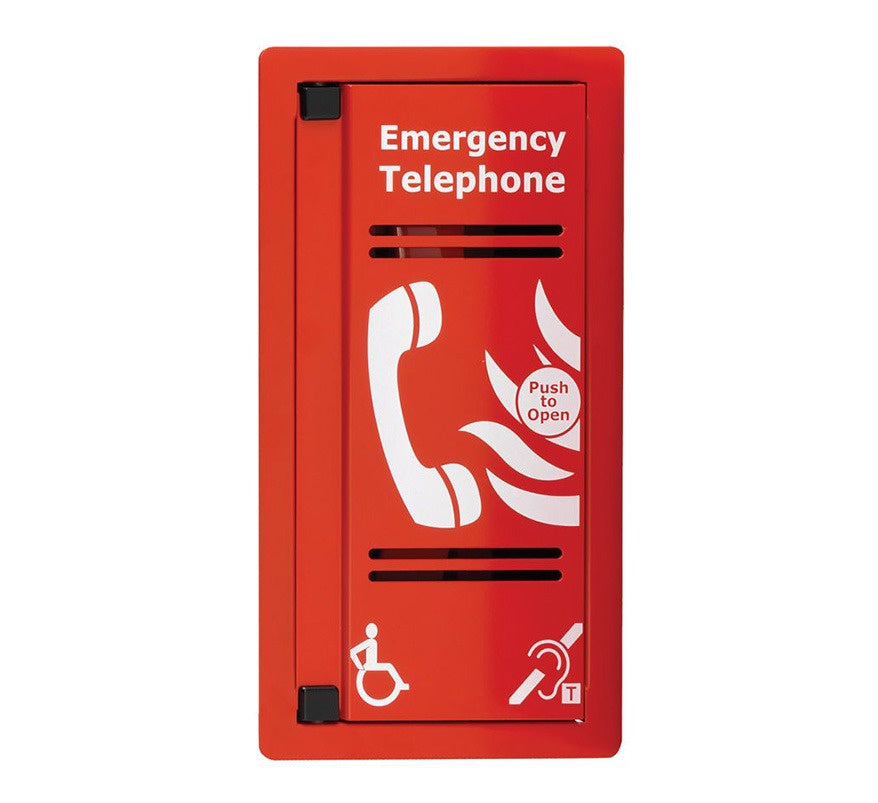

The Eaton VoCALL CFVCFHP is an analogue Type A outstation in red, for flush mounting. Type A outstations are defined in BS 5839-9 and can be used either as a fire telephone for firefighting and evacuation management, or as a disabled refuge call point.
It is a compact unit with a handset behind a magnetic push-catch door for quick access, a high volume ringer, status LED and full duplex speech. It can be used on all VoCALL systems and is designed for multi-disability users, with high contrast signage in line with RNIB guidelines and a telecoil for hearing aid users. BS 5839-9 recommends Type A outstations for most locations.
Key features
- Dual use: fire telephone or disabled refuge call point
- Handset behind a magnetic push-catch door
- High volume ringer and status LED
- Full duplex operation
- Telecoil (induction loop, to BS EN 60118-4) for hearing impaired users
- High contrast signage in line with RNIB guidelines
- Compatible with all VoCALL systems
Technical specifications
-
Catalogue number: CFVCFHP
-
Type: Analogue Type A outstation, flush mount
-
Colour: Red
-
Construction: Zintec, powder coated
-
Cable: 2 core 1mm² or 1.5mm² enhanced fire rated, up to 500m
-
Back box dimensions (H x W x D): 320 x 152 x 85mm
-
Flush front dimensions (H x W): 334 x 191mm
-
Flush cut-out: 325 x 157mm
-
Weight: 1.4kg
-
Mounting height: 1200mm from finished floor level to centre of unit
