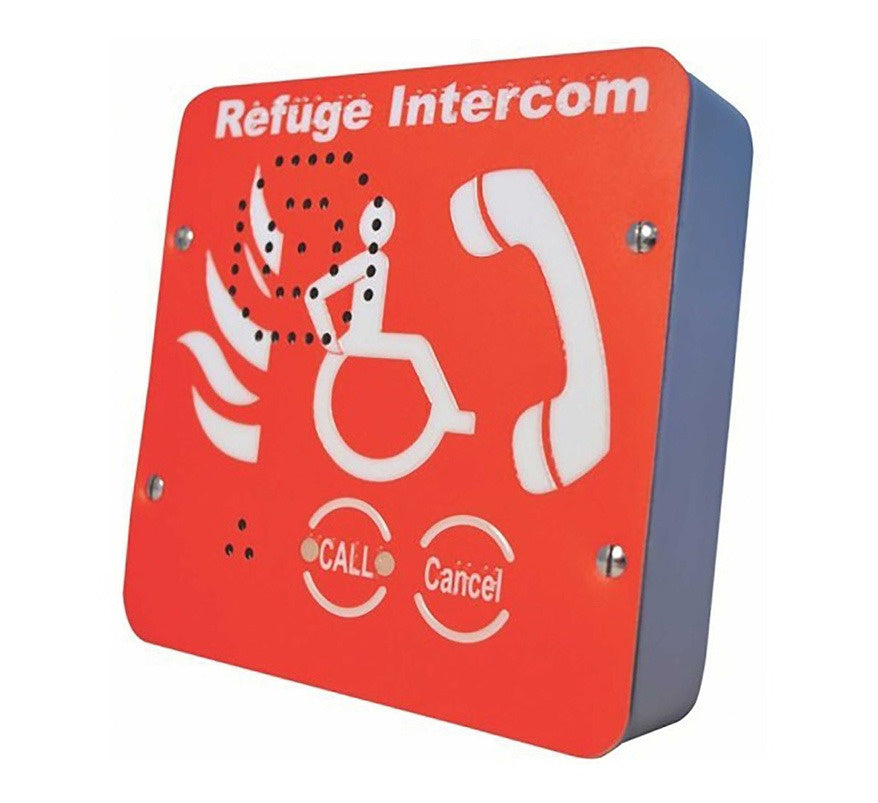

Eaton VoCALL Analogue Type B Disabled Refuge Outstation (Red, Surface Mount) (CFVCSHF)

The Eaton VoCALL CFVCSHF is an analogue Type B outstation in red, for surface mounting. Type B outstations are defined in BS 5839-9 and are used as disabled refuge call points, giving full duplex, two-way voice communication with the VoCALL master unit.

The unit is compact and easy to use, with a press-to-call button, a cancel button, a high volume ringer, status LEDs and tactile Braille signage. It can be used on all VoCALL systems and is designed for multi-disability users, with high contrast signage in line with RNIB guidelines and an induction loop coil for hearing aid users. BS 5839-9 recommends Type B outstations only where background noise is below 40dBA.

Key features

• Full duplex, two-way voice communication
• Press-to-call and cancel buttons
• High volume ringer
• 2 red status LEDs (flashing for location, solid when in use)
• Induction loop coil (to BS EN 60118-4) for hearing aid users
• Tactile Braille signage and high contrast labelling
• 20mm cable glands; top, rear or bottom cable entry
• Compatible with all VoCALL systems

Technical specifications

• Catalogue number: CFVCSHF
• Type: Analogue Type B outstation, surface mount
• Colour: Red
• Construction: Zintec, powder coated
• Cable: 2 core 1mm² or 1.5mm² fire rated, up to 500m
• Back box dimensions (H x W x D): 135 x 135 x 42mm
• Weight: 1.105kg
• Mounting height: 1000mm from finished floor level to centre of unit
