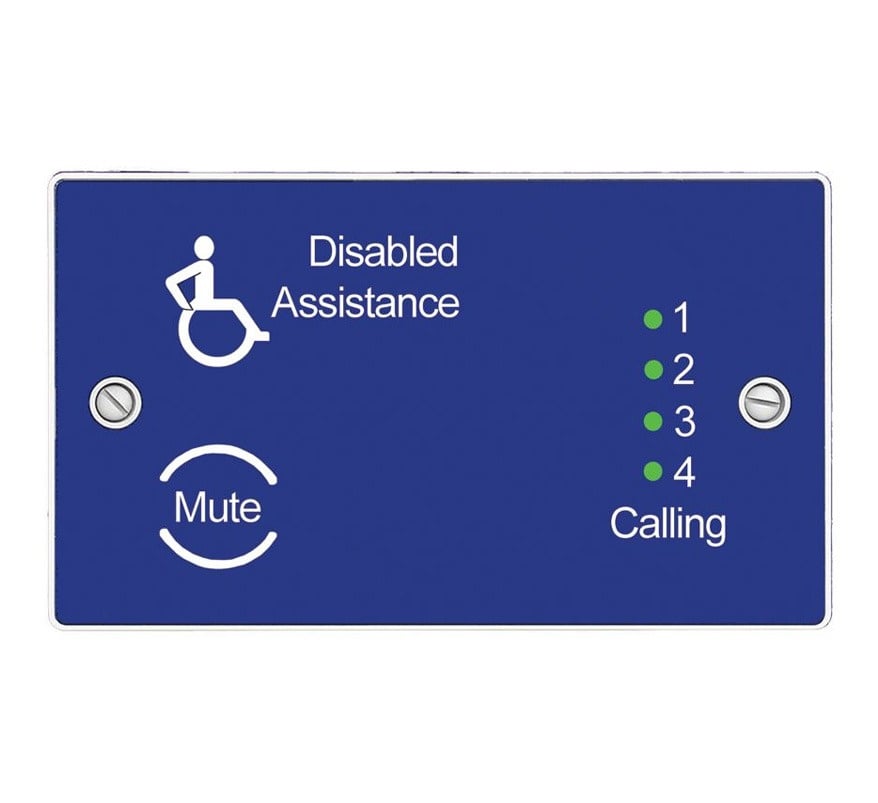

The Eaton CFEASL4 is a 4 way splitter unit for the Eaton Emergency Assist Alarm range. It allows up to 4 standalone areas that may need emergency assistance, such as accessible toilets, to be monitored from one location, like a reception or security desk, so staff can respond to an alarm quickly.

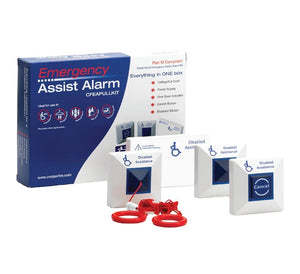

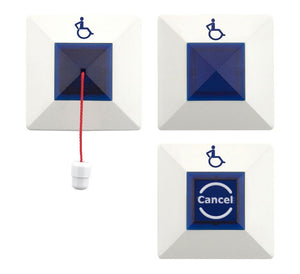

The splitter is powered by the emergency assist power supply supplied with the CFEAPULLKIT, and in turn powers each connected alarm, so no mains supply or separate PSU is needed at each toilet. Use a CFEAPULLKIT as the first alarm point and the lower cost CFVCEA kit (no PSU) for additional points.
Key features
- Monitors up to 4 emergency assist alarm areas from one point
- High visibility, compact design
- Local alarm lights use blue LEDs to avoid confusion
- No mains or PSU needed at each area when using the splitter
- Volt-free relay output
Technical specifications
-
Catalogue number: CFEASL4
-
Output: Volt-free relay
-
Construction: PC
-
Dimensions (H x W x D): 86 x 146 x 39mm
-
Weight: 0.134kg
-
Cable: Minimum 2 core 0.4mm²
-
Power: From CFEAPULLKIT power supply
