Eaton VoCALL Emergency Assist Alarm Kit (No PSU) (CFVCEA)

The Eaton CFVCEA is an emergency assist alarm kit designed to integrate disabled toilet and refuge call functions into an Eaton VoCALL network or VoCALL Compact emergency voice communication system. It has no power supply of its own: it is powered, monitored and battery backed by the VoCALL system, so all emergency assist calls are monitored from the same location. It helps meet the requirements of Building Regulations Approved Document M and the Equality Act 2010. An activation shows as a call on the VoCALL system but has no speech path.

Key features

• Monitored to BS 5839-9 by the VoCALL system
• Remote powered from VoCALL - no separate PSU needed
• Dual loop pull cord
• High contrast labels and blue indication
• Tactile braille signage on the cancel plate for partially sighted users
• No additional equipment needed to connect to VoCALL

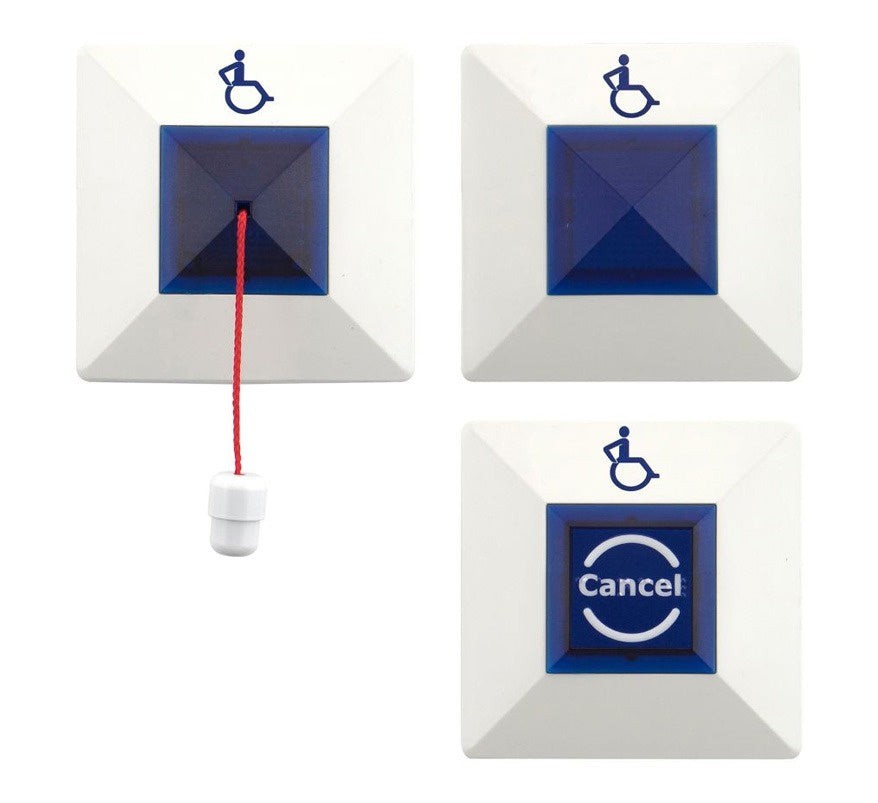

• Pull cord, cancel unit and over door indicator all light when a call is made; the over door indicator also sounds a buzzer

Technical specifications

• Wiring from VoCALL exchange: single pair (fire-rated cable optional); open or short circuit reported as a fault
• Monitoring: 10K resistor must be fitted in the pull cord unit
• Device wiring: minimum 2 core 0.4 mm² cable, segregated from mains wiring
• Circuit: limited to one each of over door indicator, pull cord unit and cancel unit
• Installation: to BS 8300 and Approved Document M; indoor, clean and dry locations
• Lower cord ring: 100 mm from the floor
