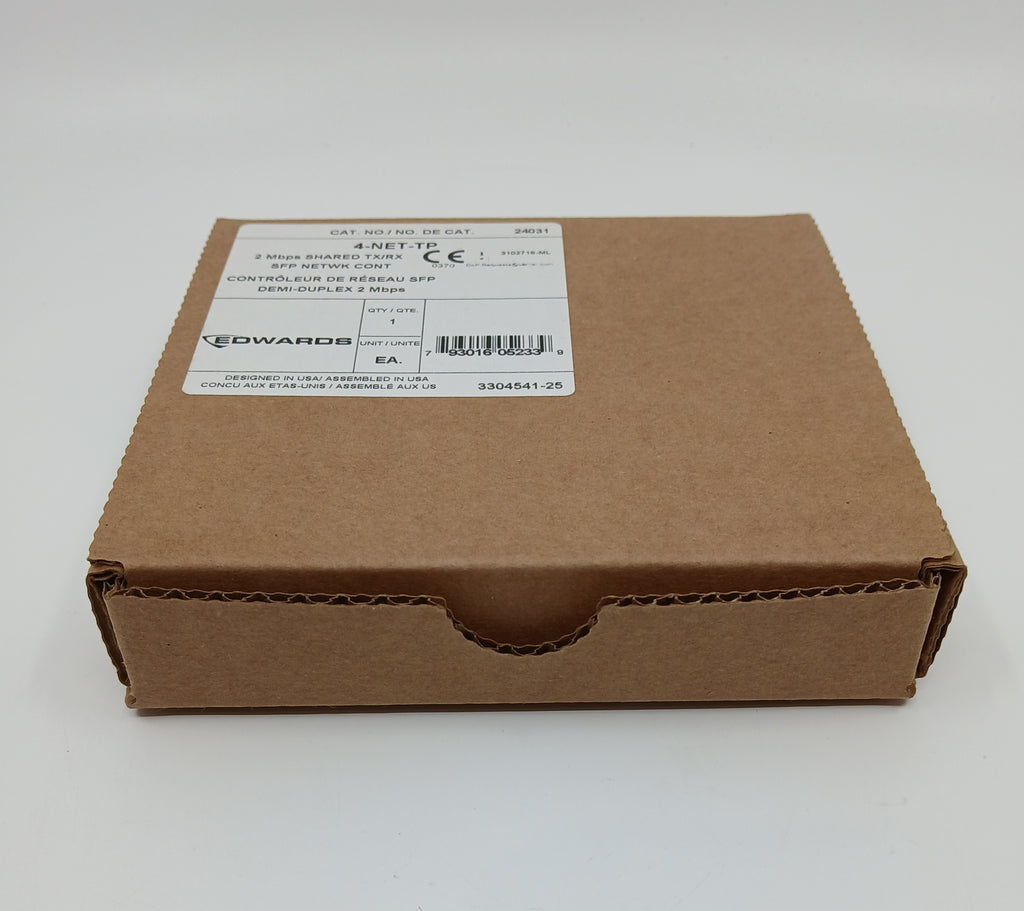

The Edwards 4-NET-TP is a small form-factor pluggable (SFP) network controller for the Edwards EST4 life safety control platform (EN54 version), for panel-to-panel connections over twisted pair or Cat 5 copper cable. EST4's self-configuring IPv6 network carries all panel-to-panel services on a single network cable, so no separate audio riser or telephone interconnections are needed.
Key features
- Plugs into the SFP network slots on the 4-CPU-E (two per CPU) and other EST4 network devices
- Hot-swappable network connection
- Carries panel data, voice audio and firefighters' telephone on the same cabling
- Choose the SFP to match the installed cable - media can differ between panels
Technical specifications
- Media: twisted pair or Cat 5
- Data rate: 2 Mbps, shared TX/RX
- Distance: up to 5,000 ft (1.5 km) between any two panels
- System: EST4 (4-CPU-E network ports)
- Data sheet reference: E85014-0008
