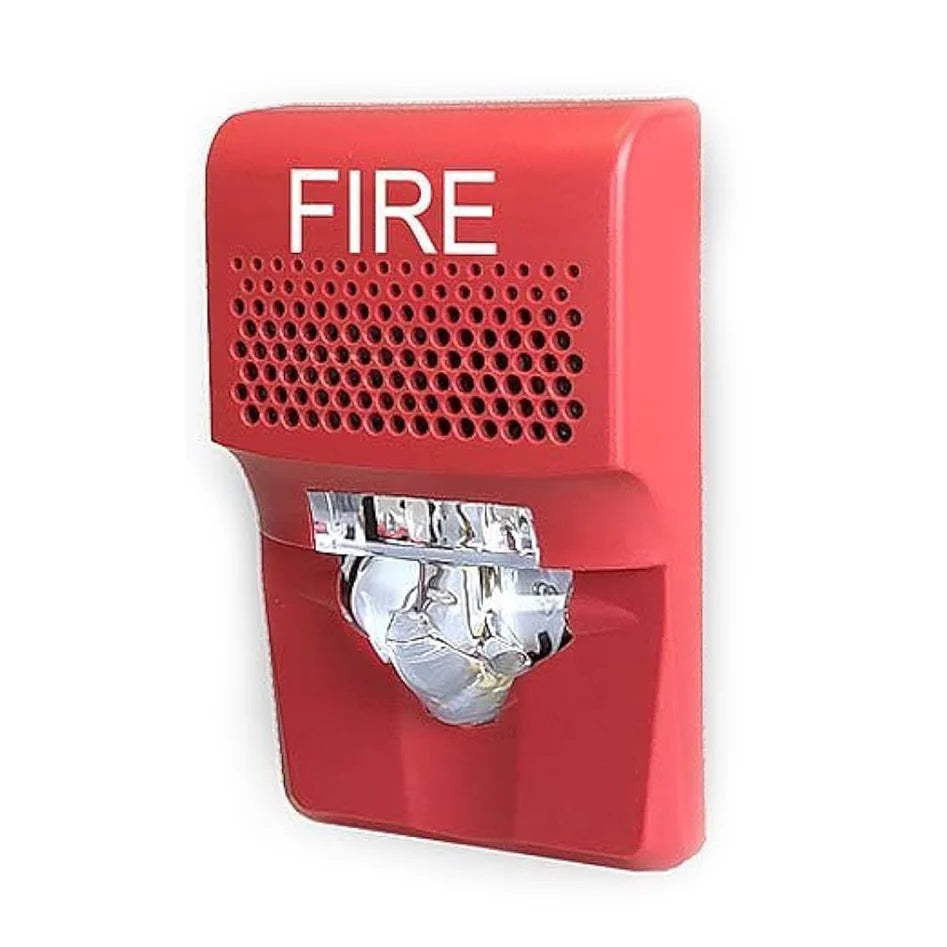

The Edwards G1AVRF-E is a Genesis LED G1 series compact wall-mount sounder-strobe for EN 54 fire alarm systems, with a red housing and "FIRE" marking. It combines a high-output sounder with an ultra-low-current LED strobe in a sleek, low-profile housing, and is listed in Edwards' EN54 version EST4 submittal guide.
Key features
- Sounder output from 93.4 dBA up to 103.8 dBA
- Constant or temporal 3 sounder output and high or low dB, set with a switch on the side of the device
- High-performance LED strobe with W-2.4-8.5 cuboid coverage
- Synchronised strobes: 1 flash per second, within 10 ms over a two-hour period on a common circuit
- Independent sounder control over a single pair of wires when used with the Edwards Signal Master module
- Compact, low-profile wall appliance about the size of a deck of playing cards
- Part of the Genesis LED G1 EN54 series
- Class A or Class B notification appliance circuit wiring
- #18 to #12 AWG terminals, ideal for long runs and existing wiring
Technical specifications
- Function: sounder-strobe
- Sounder output: 93.4 to 103.8 dBA
- Current: 24 mA DC
- Strobe coverage: W-2.4-8.5 (cuboid)
- Flash rate: 1 flash per second (synchronised)
- Circuit: supervised signal circuit, 20 to 24 VDC
- Housing: red, "FIRE" marking
- Mounting: wall (one-gang surface mount box G1RB-E red / G1WB-E white available)
- Standards: synchronisation circuitry designed to comply with EN 54-3 and EN 54-23
- Terminals: #18 to #12 AWG
- Model code: G1 = wall mount, A = sounder, V = strobe, AV = sounder-strobe, R/W = red/white, N/F = no marking/FIRE, E = Europe
