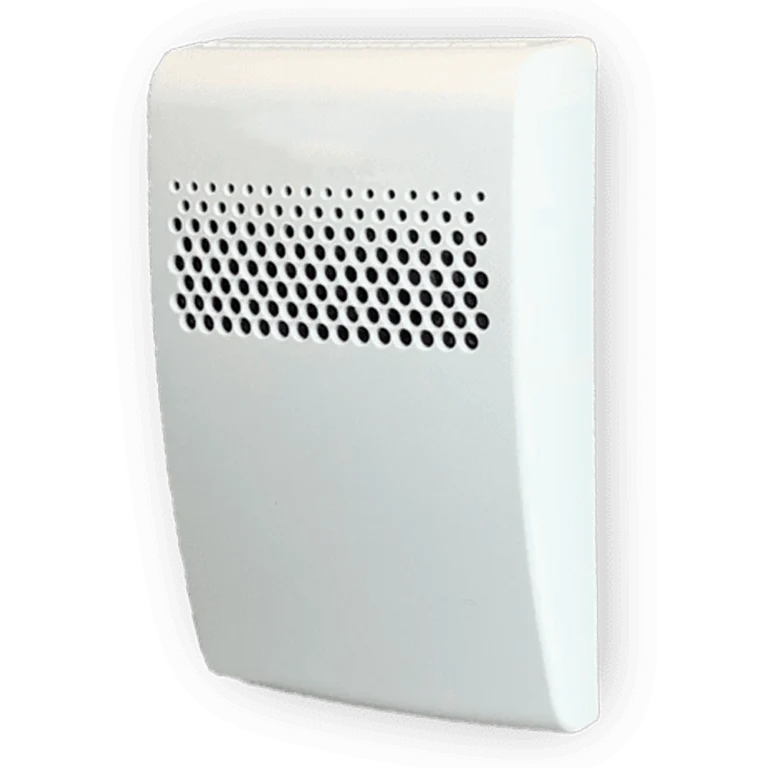

The Edwards G1AWN-E is a Genesis LED G1 series compact sounder for EN 54 fire alarm systems, with a white housing and no marking. Its multiple-frequency tone gives excellent wall penetration and an unmistakable warning, and it is listed in Edwards' EN54 version EST4 submittal guide.
Key features
- Output as high as 103.8 dBA
- Unique multiple-frequency tone for excellent wall penetration
- Constant or temporal 3 output, selected with a switch under the cover - no jumpers to cut
- High/low dBA switch reduces output by about 6 dBA
- Wall or ceiling mounting
- Suitable for coded or non-coded notification appliance circuits
- Compact, low-profile wall appliance about the size of a deck of playing cards
- Part of the Genesis LED G1 EN54 series
- Class A or Class B notification appliance circuit wiring
- #18 to #12 AWG terminals, ideal for long runs and existing wiring
Technical specifications
- Function: sounder only
- Maximum output: 103.8 dBA
- Current: 13 mA DC (low dBA), 23 mA DC (high dBA)
- Low setting: about 6 dBA below high
- Circuit: supervised signal circuit, 20 to 24 VDC
- Housing: white, no marking
- Mounting: wall or ceiling (one-gang surface mount box G1RB-E red / G1WB-E white available)
- Terminals: #18 to #12 AWG
- Model code: G1 = wall mount, A = sounder, V = strobe, AV = sounder-strobe, R/W = red/white, N/F = no marking/FIRE, E = Europe
