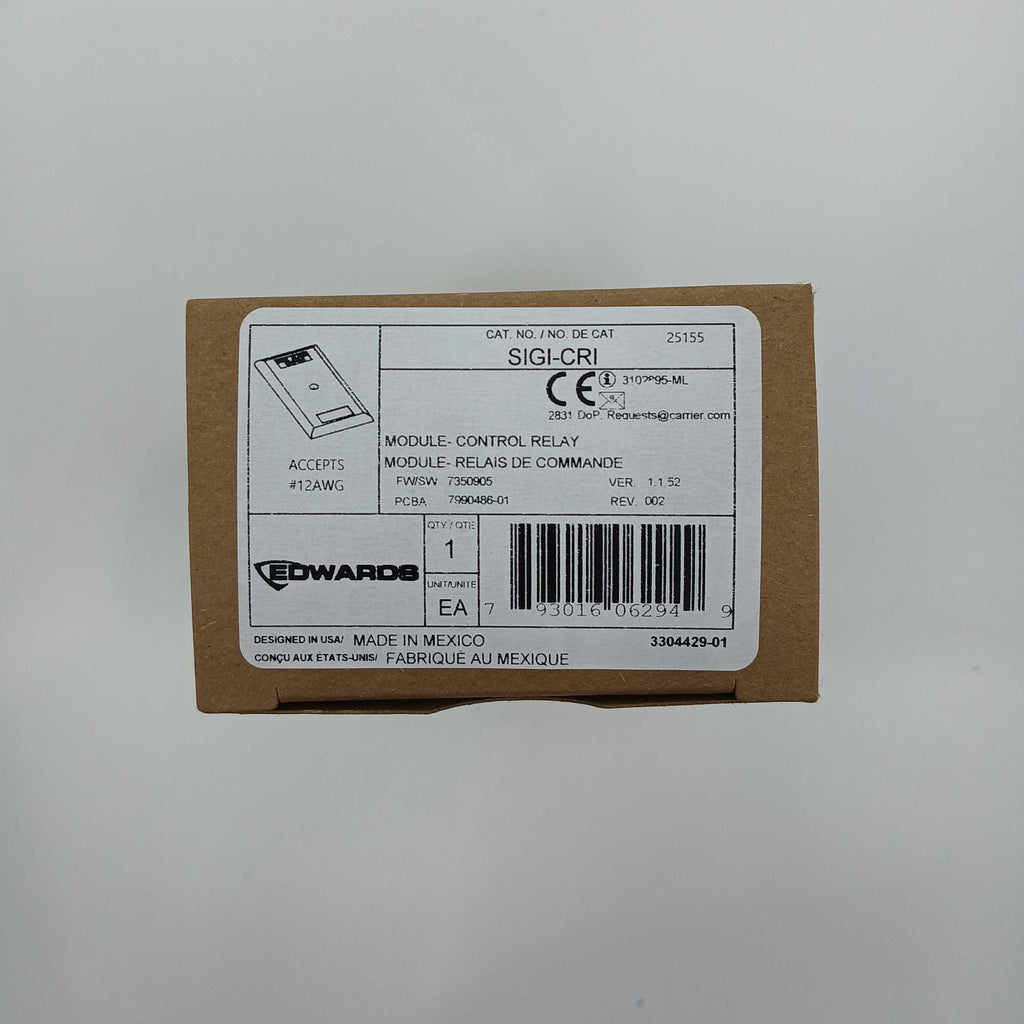

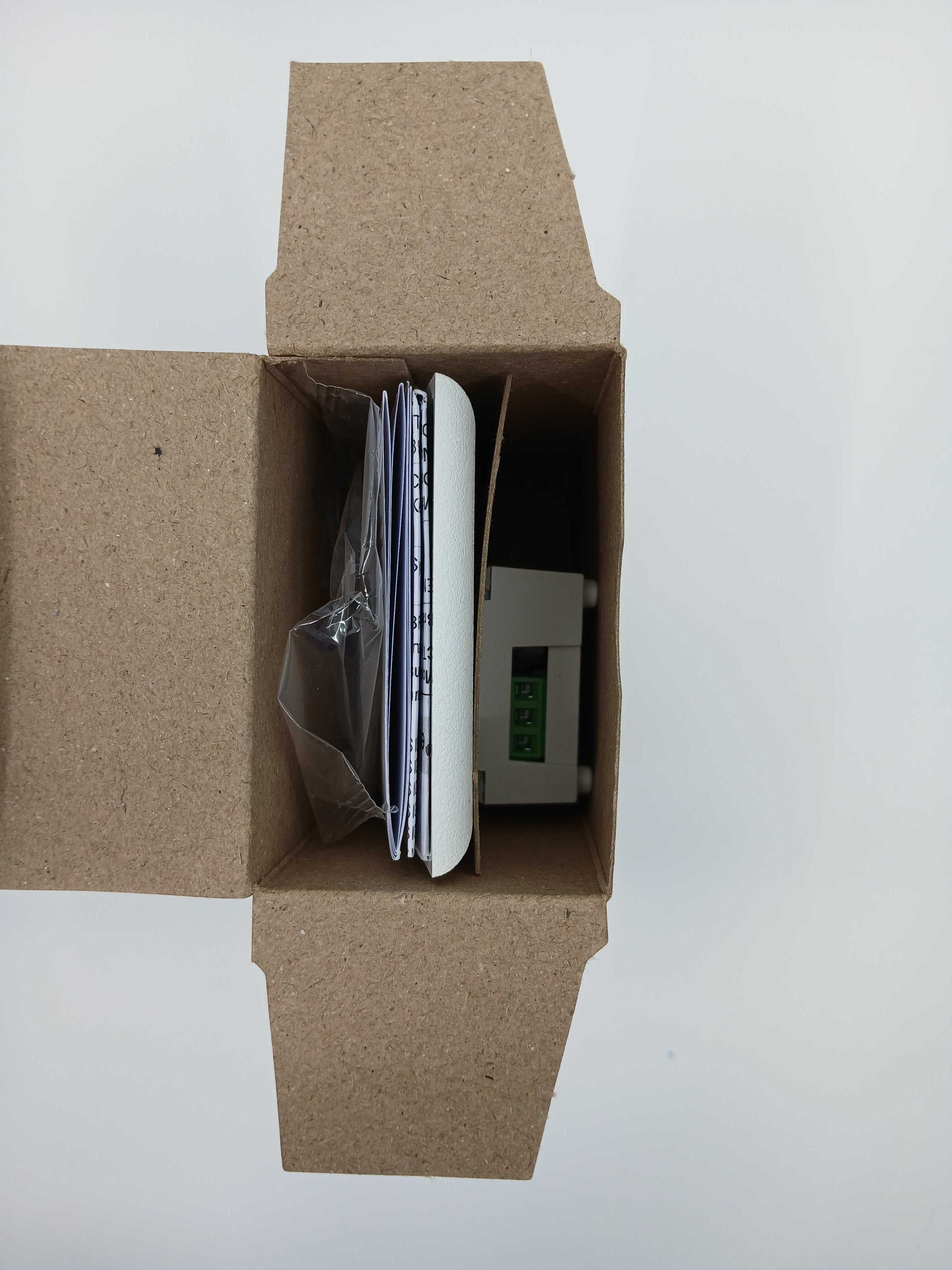

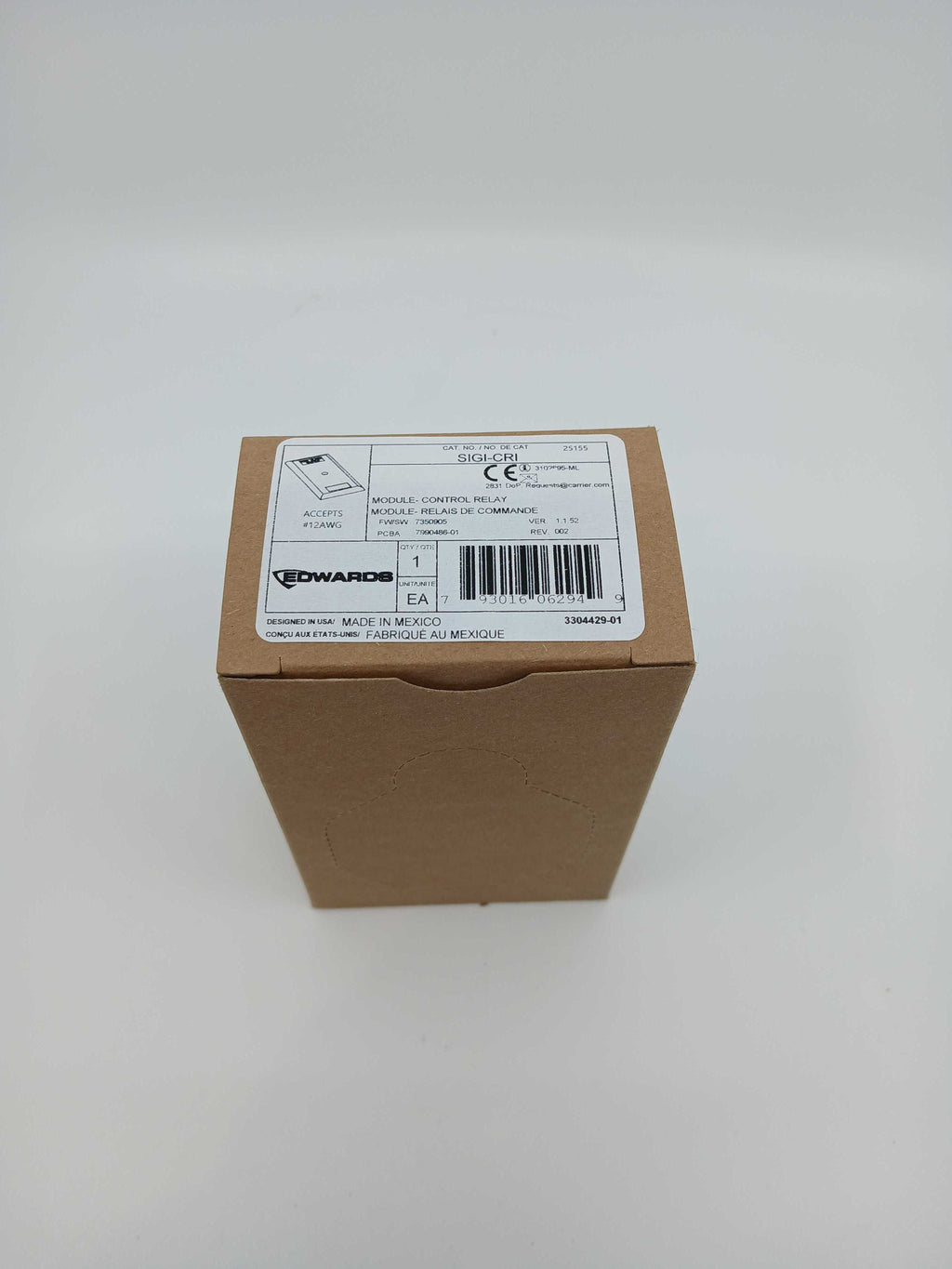

The Edwards SIGI-CRI is a Signature Series intelligent control relay module with an integrated isolator, for Edwards EST4 (EN54) analogue addressable systems. It provides a Form C dry relay contact to control external equipment such as door closers, fans and dampers. On command from the loop controller the relay operates its normally open or normally closed contact, and the on-board microprocessor ensures the relay is in the correct on/off state.
Key features
- Form C dry relay contact (N.O. or N.C.)
- Integrated line fault isolator
- Controls door closers, fans, dampers and similar equipment
- Microprocessor ensures the relay is in the correct state
- One personality - no user configuration required
- Signature Series intelligent device with on-board microprocessor (distributed intelligence)
- Self-diagnostics and history log stored in non-volatile memory
- Automatic device mapping by the Signature loop controller
- Fast, stable digital communication - shielded or twisted wiring is not required
Technical specifications
- Output: Form C dry relay contact
- Isolator: integrated
- Data sheet reference: E85001-0706
- Signature loop controller: 3-SSDC2-E (single) or 3-SDDC2-E (dual) on the EST4 panel
