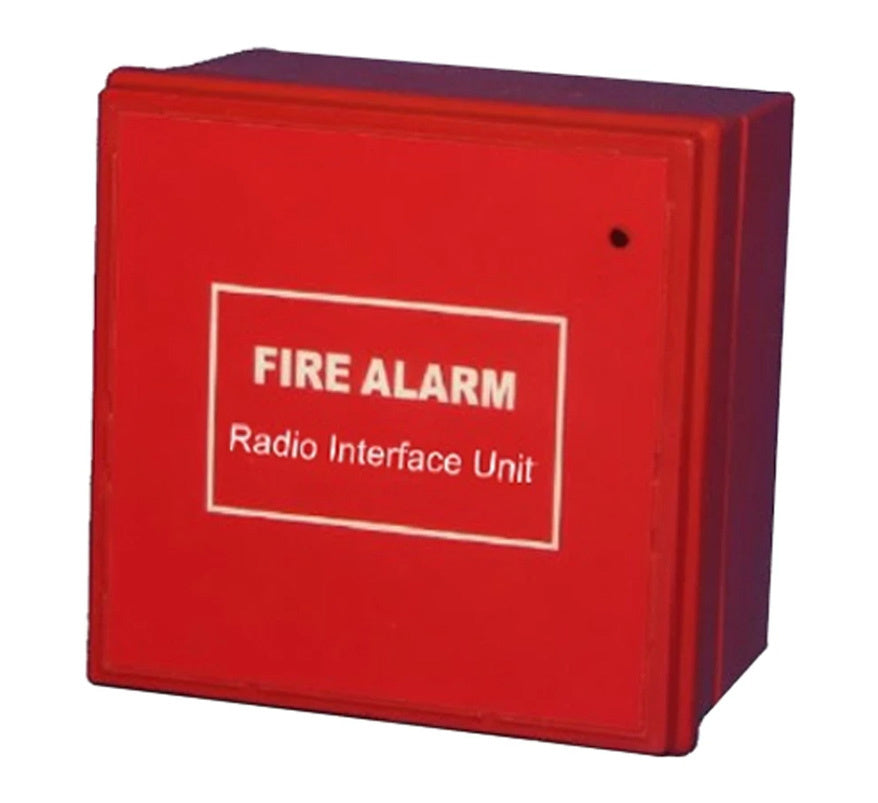

The Electro Detectors Zerio Plus EDA-T6080 is a radio (wireless) input/output unit for the Zerio Plus wireless fire alarm system. It offers a wide range of operating modes, with two monitored inputs and a set of clean normally open / normally closed contacts, for interfacing the fire alarm with other equipment. It is supplied complete with transmitter, mounting box and battery.
Zerio Plus is Electro Detectors' EN 54 certified radio (wireless) fire alarm system, designed and manufactured in Harlow, Essex. It supports up to 240 fully addressable devices per system.
Key features
- 2 monitored inputs
- Set of clean NO/NC contacts
- Fully addressable
- Continual monitoring and self-testing
Technical specifications
-
Part number: EDA-T6080
-
Radio: 868MHz narrow band FM, 13 channels
-
Power source: 1 x EDA-Q690 dual lithium battery pack
-
Battery life: 2-3 years
-
Width: 90mm
-
Depth: 62mm
-
Weight: Approx. 200g
-
Operating temperature: 0°C to +60°C
-
Humidity: 0 to 95%, non-condensing
-
Standards: EN 54-25
What's in the box
- I/O unit (transmitter)
- Mounting box
- Battery pack
