Shop all Elmdene by Potter

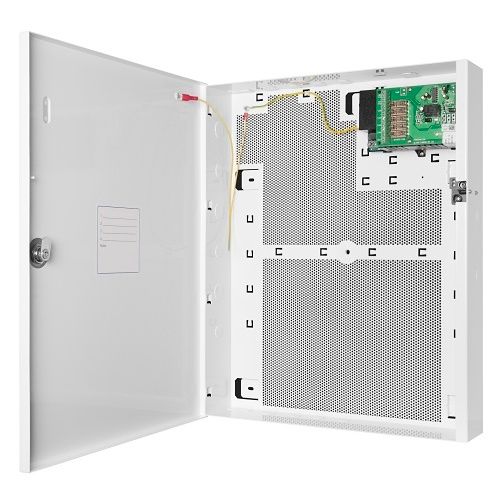

Elmdene ACCESS-PSU2 Switch Mode Power Supply Unit, 13.8V DC, 4A with Battery Monitoring, H500xW400xD80mm
SKU: ACCESS-PSU2Brand: Elmdene by Potter
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Elmdene ACCESS-PSU2 Switch Mode Power Supply Unit, 13.8V DC, 4A with Battery Monitoring, H500xW400xD80mm
£148.10
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Closely Regulated 13.8Vdc/27.6V Output
- Full Rated Current to Load + battery charging current
- Universal Mains Voltage Input 90V - 264V ac
- Electronic Overload & Mains Transient Protection
- PCB Stand-offs supplied for common A/C boards
- Switchable 12V/24V & independent ancillary relay on 8A model
Frequently bought together
Elmdene by Potter
Elmdene AMS-EBIR-BOX Surface Mount Box for AMS-EBIR3-RG, 28mm, Chrome Finish
Sale price£7.85
In stock
Product details
13.8V dc 4A BM SMPSU, 4-way Fused Output Module, to fit 4 x small or 2 x mid-sized door controllers. Enclosure size 500H x 400W x 80D, Max Battery 12V 17Ah
Main Features
- Closely Regulated 13.8Vdc/27.6V Output
- Full Rated Current to Load + battery charging current
- Universal Mains Voltage Input 90V - 264V ac
- Electronic Overload & Mains Transient Protection
- PCB Stand-offs supplied for common A/C boards
- Switchable 12V/24V & independent ancillary relay on 8A model
- Front & Rear Tamper Protection
- Mains & Fault Status LED Indication
Specifications
| Amperage | 4.00A |
|---|---|
| Compatibility | Access Door Controller |
| Depth | 80.00mm |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Enclosure |
| Height | 500.00mm |
| Input Voltage | 120V AC; 230V AC |
| Limited Warranty | Lifetime |
| Output Current | 4.0000A |
| Output Power | 55W |
| Output Voltage | 13.8V DC |
| Product Line | Access |
| Product Series | PSU |
| Product Type | Power Supply |
| Width | 400.00mm |
| CE Marking | Yes |
| Manufacturer | Potter Electric Signal, LLC |
| RoHS Compliant | Compliant |
| Sector | Access Control |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Elmdene ACCESS-PSU2 Switch Mode Power Supply Unit, 13.8V DC, 4A with Battery Monitoring, H500xW400xD80mm Product datasheet · ACCESS-PSU2 · PDF Open datasheet
