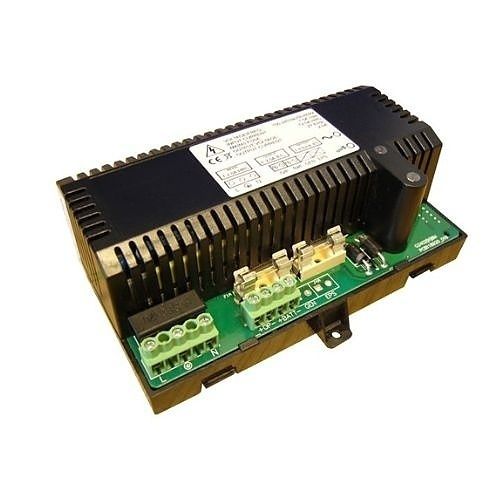

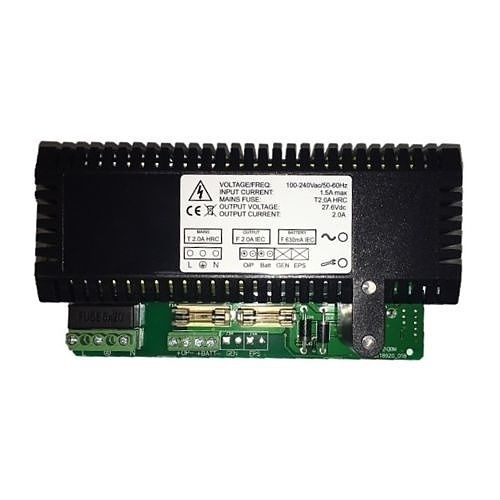

Elmdene G2402NU Switch Mode Power Supply Unit, 24V DC 2A, Module only
SKU: G2402NUBrand: Elmdene by Potter
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 1 | 2 to 3 working days |
Elmdene G2402NU Switch Mode Power Supply Unit, 24V DC 2A, Module only
£55.15
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Universal mains input voltage 90-264vac
- Additional 0.5A to charge 2 x 12V standby batteries
- High efficiency electronics for reduced running costs and lower operating temperatures
- Continuous full rated current to load
- Modular construction for ease of maintenance & installation
- Installer safe design with all high voltage electronics fully shrouded
Frequently bought together
Elmdene by Potter
Elmdene G2403N-C Switch Mode Power Supply Unit, 24V DC 3A, H275xW330xD80mm
Sale price£87.20
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Elmdene by Potter
Elmdene G2403NU Switch Mode Power Supply Unit, 24V DC 3A, Module only
Sale price£73.20
In stock
Elmdene by Potter
Elmdene G2405BMU Switch Mode Power Supply Unit with Battery Monitoring, 24V DC 5A, Module only
Sale price£145.25
In stockProduct details
24V d.c. Switch Mode PSU (27.6V) 2Amp to load + 0.5A battery charging. Multi LED status indication. Un-Boxed
Main Features
- Universal mains input voltage 90-264vac
- Additional 0.5A to charge 2 x 12V standby batteries
- High efficiency electronics for reduced running costs and lower operating temperatures
- Continuous full rated current to load
- Modular construction for ease of maintenance & installation
- Installer safe design with all high voltage electronics fully shrouded
- Reverse battery connection protection
- Full electronic short circuit and overload protection on load output
- Mains transient protection circuit
- Green Mains present LED
Specifications
| Amperage | 2.00A |
|---|---|
| Compatibility | Fire And Access Control |
| Depth | 52.00mm |
| Environmental Certification | CE |
| Environmentally Friendly | Yes |
| Form Factor | Unboxed |
| Height | 71.00mm |
| Input Voltage | 120V AC; 230V AC |
| Limited Warranty | 3-Year |
| Output Current | 2.0000A |
| Output Voltage | 24V DC |
| Package Type | Box |
| Product Line | G Range |
| Product Series | N |
| Product Type | Power Supply |
| Width | 106.00mm |
| Certifications & Standards | EN54-4 |
| Colour | Green |
| Country of Origin | UK |
| Manufacturer | Potter Electric Signal, LLC |
| Modular | Yes |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Elmdene G2402NU Switch Mode Power Supply Unit, 24V DC 2A, Module only Product datasheet · G2402NU · PDF Open datasheet
