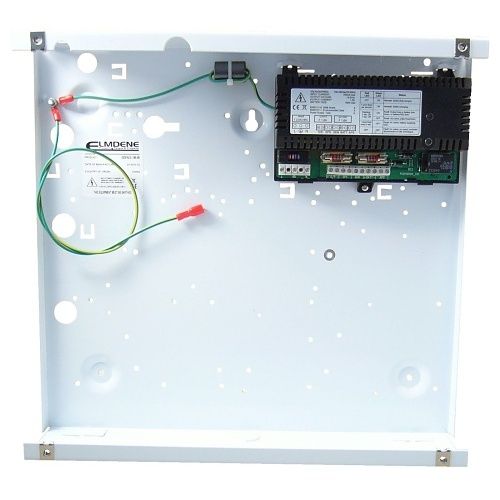

Name: Elmdene GEN2-18-B Switch Mode Power Supply Unit, 12V DC 1.5A, H330xW355xD80mm, Compliant with EN50131-6
Brand: Elmdene by Potter
SKU: GEN2-18-B
Price: 61.95 GBP
Availability: InStock

Elmdene GEN2-18-B Switch Mode Power Supply Unit, 12V DC 1.5A, H330xW355xD80mm, Compliant with EN50131-6

Roll over image to zoom in Click on image to zoom

12V d.c. Switch Mode PSU (13.8V) 1.5A to load + additional current for battery charging. Grade 2 Intruder systems. Mains, Battery and PSU volt free fault outputs. Deep discharge protection. Diagnostic LEDs. Lid tamper.

Main Features

High Efficiency Switch Mode Operation
Comprehensive Battery Management; Deep Discharge Protection, Battery Fault Detection (Grade 3), High Efficiency 3 Stage Charging (18Ah)
Dedicated Fault Outputs; EPS Fault (mains fail), APS Fault (battery fault) (Grade 3), PSU Fault (general fault)
Internal LED PSU Status
High Security Front and Rear Tamper (Grade 2 front only)
Full Rated Current To Load + Battery Charging
Electronic Overload Protection
Mains Transient Protection

Specifications

Amperage	5.00A
Compatibility	Intruder Alarm
Depth	80.00mm
Environmental Certification	RoHS
Environmentally Friendly	Yes
Form Factor	Enclosure
Height	330.00mm
Input Voltage	120V AC; 230V AC
Limited Warranty	3-Year
Output Current	1.5000A
Output Voltage	13.8V DC
Product Line	GEN
Product Type	Power Supply
Weight	3.80kg
Width	355.00mm
Certifications & Standards	EN50131-6:2017; PD6662:2017
Country of Origin	UK
Manufacturer	Potter Electric Signal, LLC
RoHS Compliant	Compliant
WEEE Compliant	Compliant
