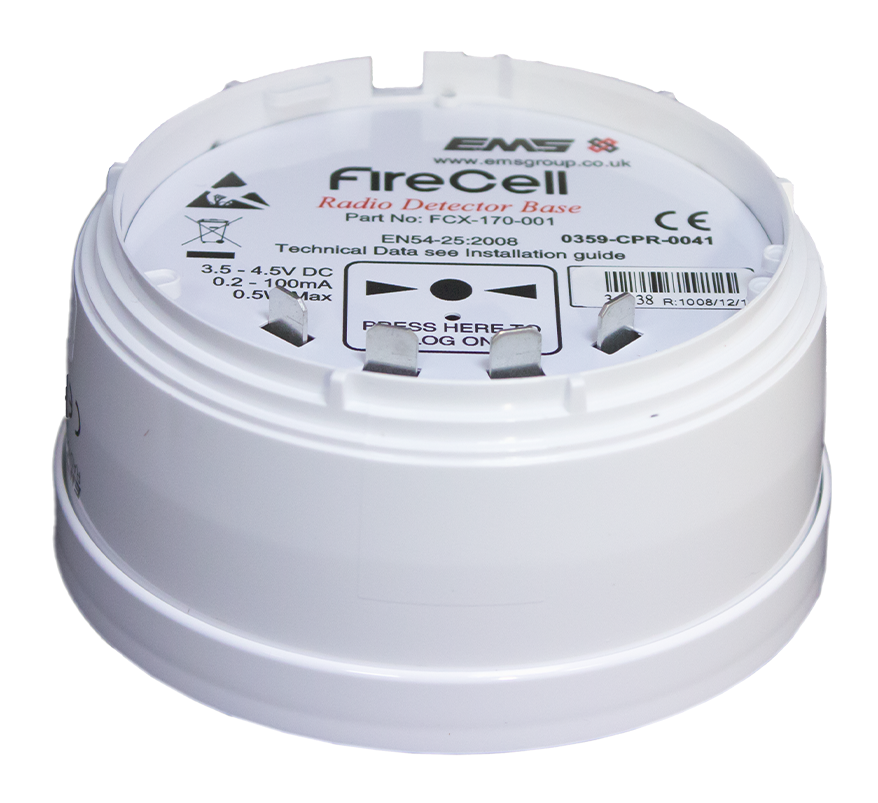

EMS FireCell Wireless Detector Base (FCX-170-001)

The EMS FireCell FCX-170-001 is the wireless detector base for the FireCell wireless fire detection system. Fitted with a FireCell detector head, such as the FCX-177-001 optical smoke detector, it forms a wireless detector that is individually addressed at the fire control panel. It is compatible with the EMS FireCell system, including the Fusion RLM.

Key features

• Dual band 868MHz radio with auto-adjusting power output
• Individual addressing at the fire control panel
• Anti-tamper locking mechanism
• Supports the FasTest detector maintenance feature
• Third-party EN certified as part of the FireCell detector
• Note: supplied as the wireless base only; detector head sold separately

Technical specifications

• Part number: FCX-170-001 (wireless detector base only)
• Frequency: 868MHz, dual band
• Radio range: Up to 1,250m (clear line of sight)
• Output power: 0 to 14dBm (auto adjusting)
• Signalling protocol: X
• Batteries: 6 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial)
• Dimensions (with optical detector): 113mm diameter x 76mm depth
• Operating temperature: -10°C to 55°C
• Ingress protection: IP23, indoor use only
• Standards: EN 54-7 and EN 54-25 (with FCX-177-001 optical smoke detector)
