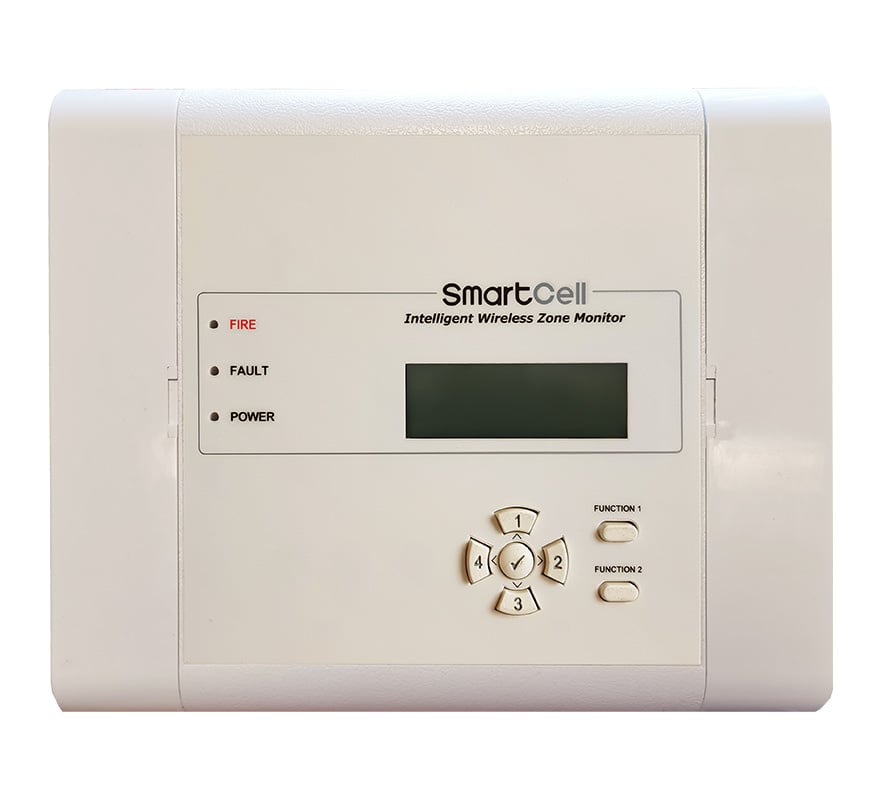

EMS SmartCell 24V Intelligent Wireless Zone Monitor (SC-13-2100-0001-99)

The EMS SmartCell Intelligent Wireless Zone Monitor (iWZM), 24 VDC version, part number SC-13-2100-0001-99, adds up to 16 SmartCell wireless devices to an existing conventional or addressable fire alarm system. On a conventional panel it connects to a dedicated zone and sounder circuit; on an addressable system it connects through its fire and fault inputs and two voltage-free fire outputs.

This version requires a 24 VDC supply; a 230 VAC version with integral PSU and battery (SC-13-1100-0001-99) is also available.

Key features

• Universal connection to conventional and addressable fire control panels
• Supports up to 16 SmartCell wireless devices
• 80 character LCD display
• Compact enclosure, fully wireless to field devices
• Two voltage-free outputs rated 30 V at 1 A for addressable connection; fire and fault inputs with supplied resistor pack
• Requires 24 VDC power

Technical specifications

• Part number: SC-13-2100-0001-99
• Supply voltage: 19.2 to 28.8 VDC
• Current consumption: 0.030 A quiescent, 0.042 A alarm
• Operating frequency: 868 MHz
• Output transmitter power: 14 dBm / 25 mW
• Signalling protocol: X5
• Maximum cable length to connected devices: 10 m
• Operating temperature: -5 to +45 °C; storage: 0 to +30 °C
• IP rating: IP30, Type A indoor use only
• Dimensions (W x H x D): 275 x 220 x 80 mm
• Weight: 1.45 kg
• Approvals: EN54-13, EN54-21 and EN54-25 (0359-CPR-00427)
