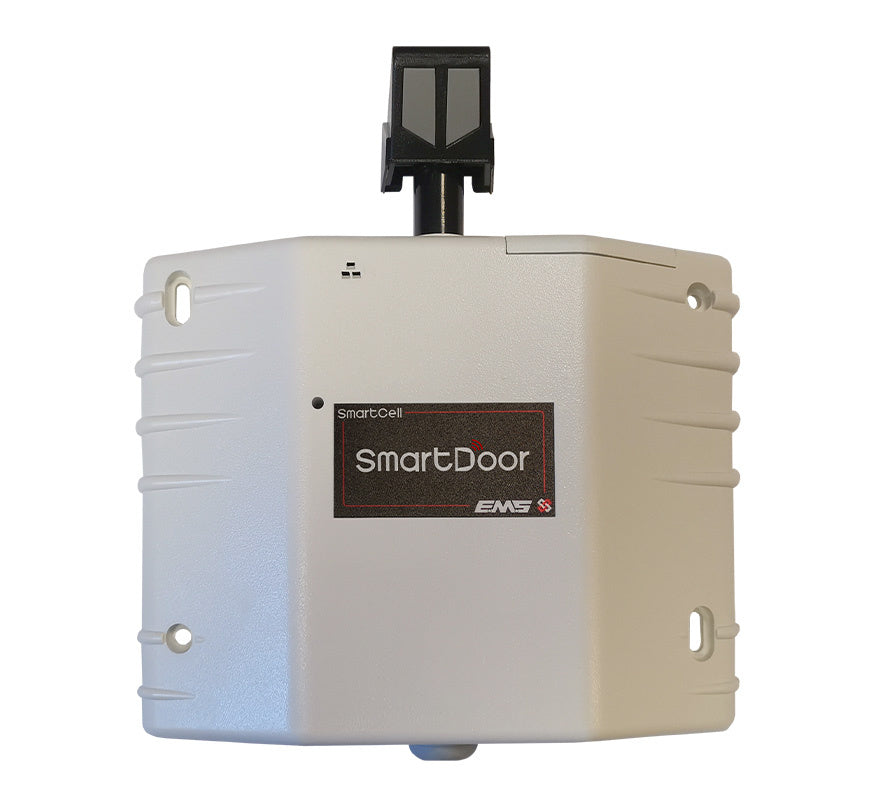

EMS SmartCell Intelligent Wireless Door Retainer - White (SC-44-0200-0001-99)

The EMS SmartDoor (white), part number SC-44-0200-0001-99, is an intelligent wireless door retainer for the SmartCell wireless fire system. It fixes to a fire door and holds it open using a plunger and floor plate, improving access throughout the building, then releases the door to close automatically when the fire system signals an alarm.

Being fully wireless and battery powered, it needs no mains or signal cabling. It is health-monitored by the SmartCell control panel and can be programmed through the panel's cause and effects as part of the building's evacuation plan. Any door closer used with SmartDoor must conform to EN 1154.

Key features

• Combines proven door-hold mechanics with SmartCell wireless operation
• Full health monitoring via system integration
• Can be included in evacuation plans via control panel cause and effects
• Improved access throughout the building
• Fast installation, no cabling
• Third party EN approved

Technical specifications

• Part number: SC-44-0200-0001-99 (white)
• Power supply: 2 x C alkaline batteries (Panasonic Powerline LR14AD or Varta Industrial 4014)
• Operating frequency: 868 MHz
• Output transmitter power: 14 dBm / 25 mW
• Signalling protocol: X5
• Maximum hold-open power size: 7
• Maximum door leaf width: 1600 mm
• Maximum door weight: 160 kg
• Operating temperature (and storage without batteries): -10 to +55 °C
• Storage temperature with batteries: -10 to +30 °C
• Location: Type A, indoor use only
• Dimensions (W x H x D): 195 x 205 x 45 mm
• Weight: 0.5 kg
• Approvals: EN54-25, EN 1155 and BS 7273-4 (category B) (0905-CPR-202117)

What's in the box

• SmartDoor unit
• Small and large floor plates
• Fixing template (MK350)
• Fixings
• ESD protection label
• 2 x C alkaline batteries
