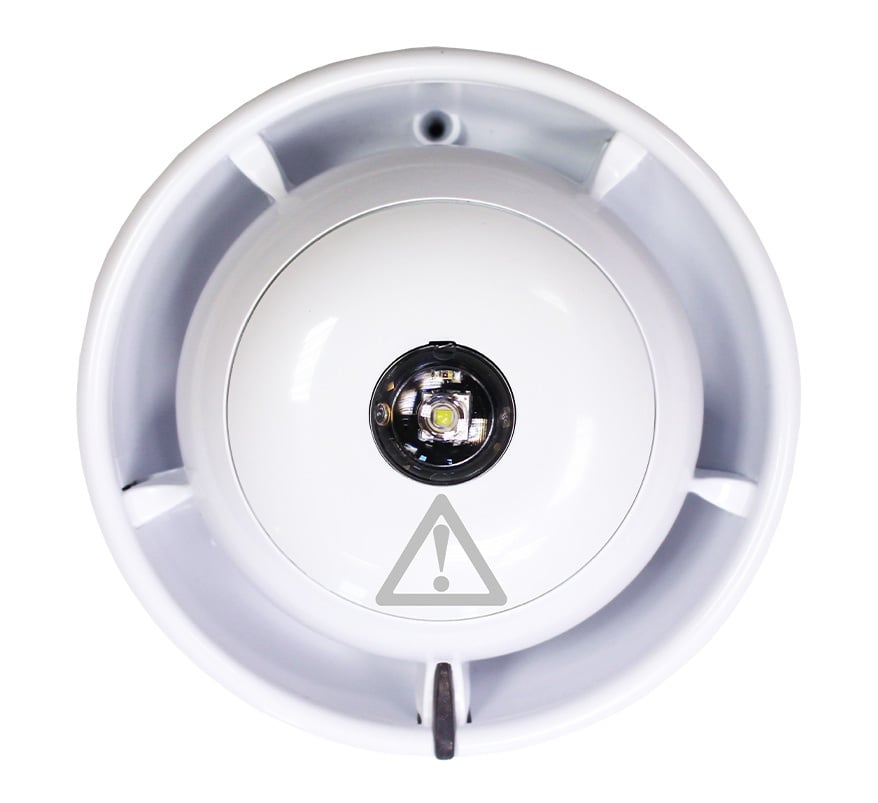

EMS SmartCell Wireless Ceiling Mounted Information Sounder VID (White Body / Blue Flash) (SC-33-0230-0001-99)

The EMS SmartCell Information White Sounder and Ceiling Visual Indicator (Blue Flash), part number SC-33-0230-0001-99, is a battery-powered wireless sounder with a blue-flash visual indicator for the information zones of a SmartCell wireless system. It is used to give audible and visual non-fire alerts and, as stated by EMS, is not for fire or security applications.

It is added to the SmartCell control panel like other SmartCell devices and needs no cabling.

Key features

• Integrated sounder and blue-flash visual indicator
• For SmartCell information zones (not for fire or security applications)
• Fully wireless, battery powered
• Optional locking mechanism (Allen key release)
• Mounting plate fixes at 60 mm centres; two fixing positions can be used on existing electrical mounting boxes

Technical specifications

• Part number: SC-33-0230-0001-99
• Body colour: white; flash colour: blue
• Sound output: 92 dB(A) at 1 m max.
• Beacon flash rate: 0.5 Hz (1 flash every 2 seconds)
• Power supply: 3 x 3.6 V lithium thionyl chloride batteries (Fanso ER14505M or HCB ER14505M)
• Operating voltage: 2.7 to 3.65 VDC
• Current consumption: 0.32 A max.; power consumption: 0.8 W max.
• Operating frequency: 868 MHz
• Output transmitter power: 14 dBm / 25 mW
• Signalling protocol: X5
• Operating temperature (and storage without batteries): -10 to +55 °C
• Storage temperature with batteries: -10 to +30 °C
• Humidity: 0 to 95% non-condensing
• IP rating: IP21C, Type A indoor use
• Dimensions: 110 mm diameter x 74 mm depth
• Approval: EN54-13 (compatibility assessment)

What's in the box

• Sounder and ceiling visual indicator
• Mounting plate
• 3 x ER14505M lithium batteries (not included in some regions)
