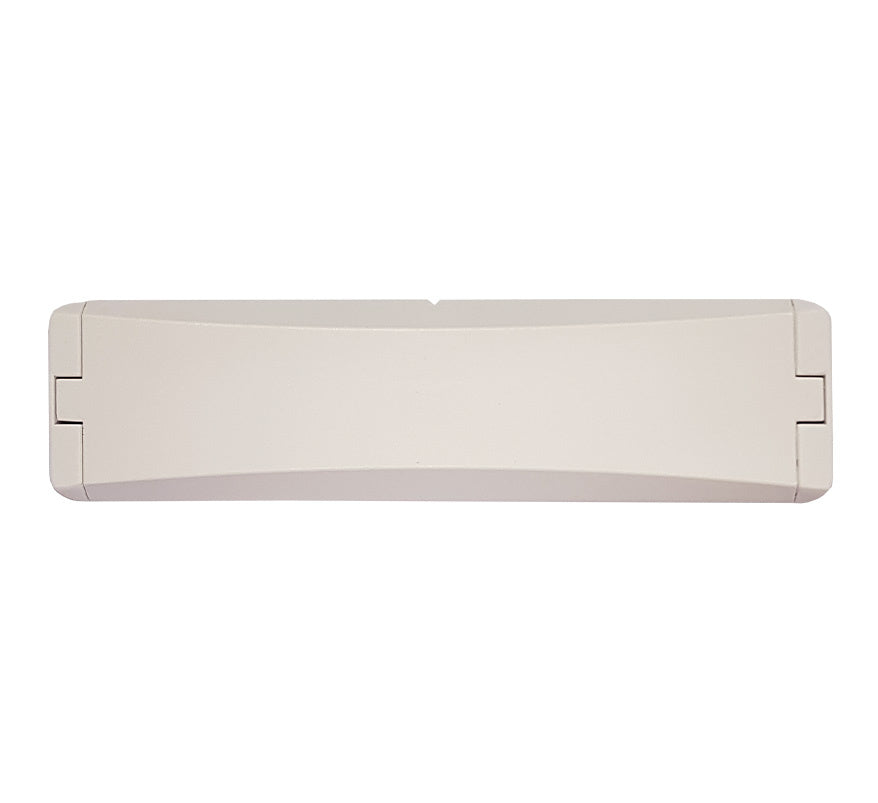

EMS SmartCell Wireless Contact Transmitter and Input Device for Information Zones (SC-43-0200-0001-99)

The EMS SmartCell Contact Transmitter and Input Device for Information Zones (SC-43-0200-0001-99) is a wireless input device that raises information alerts on the SmartCell Wireless Control Panel or SmartCell WZM. It is intended for monitoring non-fire events such as doors opening and closing, loss of power to a fridge, flood detection or an alarm output from an intruder system.

It is not for fire or security applications. The input can be wired to external equipment using the resistor pack provided, or used with the supplied magnet as a magnetic contact.

Key features

• Resistor-monitored input: monitors normal, alarm, open-circuit and closed-circuit conditions
• Alternative magnetic contact option (magnet supplied)
• Status LED shows input activation (red) and clear (green)
• Inbuilt locking mechanism with Allen key
• Optional tamper segment for extra tamper monitoring
• Fully wireless, battery powered

Technical specifications

• Power supply: 1 x 3.6 V lithium thionyl chloride battery (Fanso or HCB ER14505M)
• Operating voltage: 2.7 to 3.65 VDC
• End-of-line resistor: 20 kΩ (factory fitted)
• Operating frequency: 868 MHz
• Output transmitter power: 14 dBm / 25 mW
• Signalling protocol: X5
• Operating temperature: -10 to +55 °C
• Storage temperature: -10 to +30 °C with batteries, -10 to +55 °C without
• Humidity: 0 to 95% non-condensing
• Location: Type A, indoor use
• Dimensions (W x H x D): 30 x 110 x 28 mm
• Approval: EN54-13

What's in the box

• Magnet holder assembly, lid and device back box
• Allen key
• Resistor pack
• 5 x fixing screws
• Battery (not included in some regions)
