EMS SmartCell Wireless Fire Control Panel (24V) (SC-11-2201-0001-99)

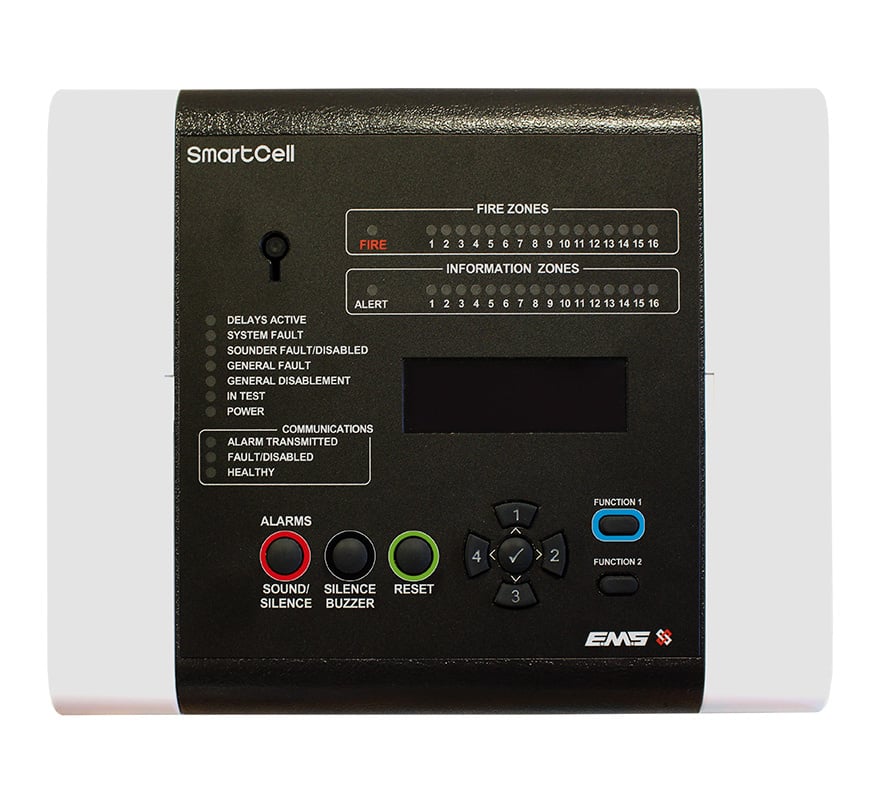

The EMS SmartCell Wireless Control Panel (24 VDC version), part number SC-11-2201-0001-99, is the control and indicating equipment at the heart of the SmartCell wireless fire detection system. It supports up to 64 wireless devices, with a maximum of 32 fire detection devices, and communicates bidirectionally with SmartCell devices in the European harmonised 868 MHz band.

As well as fire zones, the panel supports separate information zones, so information devices can raise alerts on the panel’s OLED display without triggering a fire alarm. This version is powered from an external 24 VDC supply and is supplied without a communications module; the internal communications card (SC-61-0001-0001-99) is sold separately.

Key features

• Fully wireless system, suited to small and medium-sized installations
• Up to 64 wireless devices, maximum 32 fire detection devices
• Separate fire and information zones
• 80 character OLED display
• Full cause and effect programming
• Two resistor-monitored inputs, plus mains fault and general fault inputs on the 24 VDC version
• Voltage-free fire and fault outputs
• Includes control key switch
• Accommodates internal communications card for SmartCell Services connection (sold separately)

Technical specifications

• Part number: SC-11-2201-0001-99 (Wireless Control Panel, no comms module, 24 VDC version)
• Power requirement: 19.2 to 28.8 VDC
• Operating current: 0.035 A (quiescent and alarm)
• Fuses: F1 and F2 60 V 1.2 A (resettable)
• Fire/fault relay rating: 1 A at 30 VDC
• Operating frequency: 868 to 870 MHz
• Output transmitter power: 14 dBm max. / 25 mW
• Signalling protocol: X5
• RTC and event log backup: 1 x 3 V CR2032 coin cell
• Maximum USB flash drive: 128 GB, FAT32
• Maximum cable lengths: inputs and RS232 30 m; GSM/GPRS 3 m; Ethernet 30 m
• Operating temperature: -5 to +45 °C
• Storage temperature: 0 to +30 °C
• Humidity: 95% non-condensing max.
• IP rating: IP30, Type A indoor use
• Dimensions (W x H x D): 275 x 220 x 80 mm
• Approvals: EN54-2, EN54-4, EN54-13 and EN54-25
