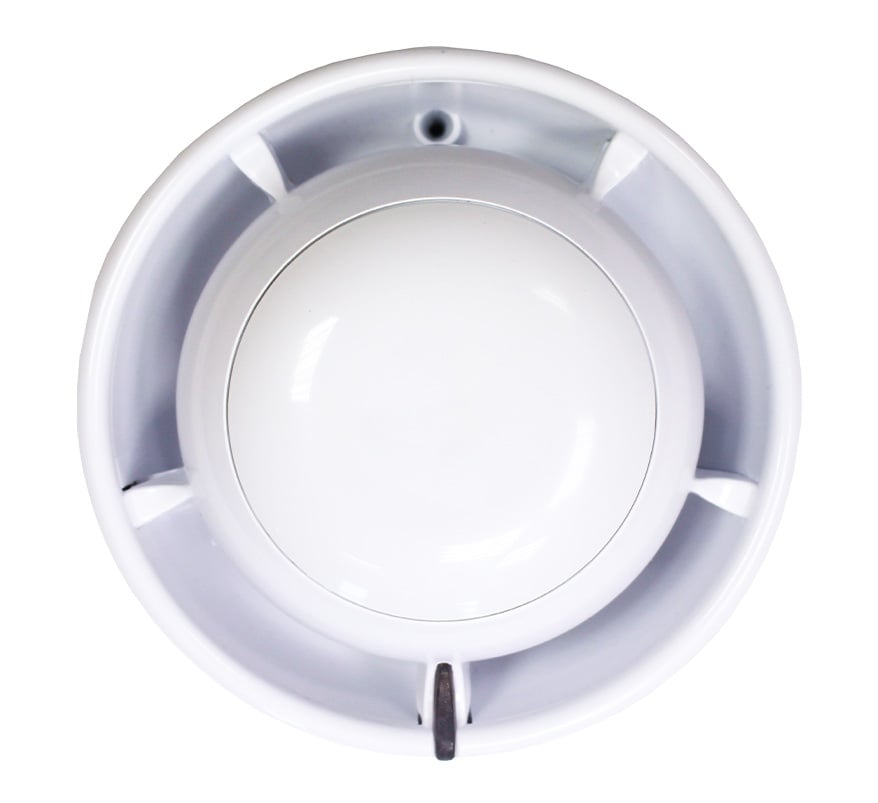

The EMS SmartCell Wireless Sounder in white (SC-31-0200-0001-99) is a small-profile, battery-powered wireless sounder for the SmartCell wireless fire system. It needs no cabling and is suitable for indoor and outdoor use.
Key features
- 32 selectable sounder tones
- Small profile, unique design
- Fully wireless, quick and easy to install
- Inbuilt locking mechanism
- Type B: suitable for indoor and outdoor use
- Batteries included
Technical specifications
- Sound output: 95 dB(A) at 1 m max.
- Power supply: 3 x 3.6 V lithium thionyl chloride batteries (Fanso or HCB ER14505M), included
- Operating frequency: 868 MHz
- Output transmitter power: 14 dBm / 25 mW
- Signalling protocol: X5
- Operating temperature: -10 to +55 °C
- Storage temperature: -10 to +30 °C with batteries, -10 to +55 °C without
- IP rating: IP33, Type B indoor/outdoor use
- Dimensions: 110 mm diameter x 72 mm depth
- Weight: 0.20 kg
- Approvals: EN54-3, EN54-13 and EN54-25 (CPR 0359-CPR-00428)
