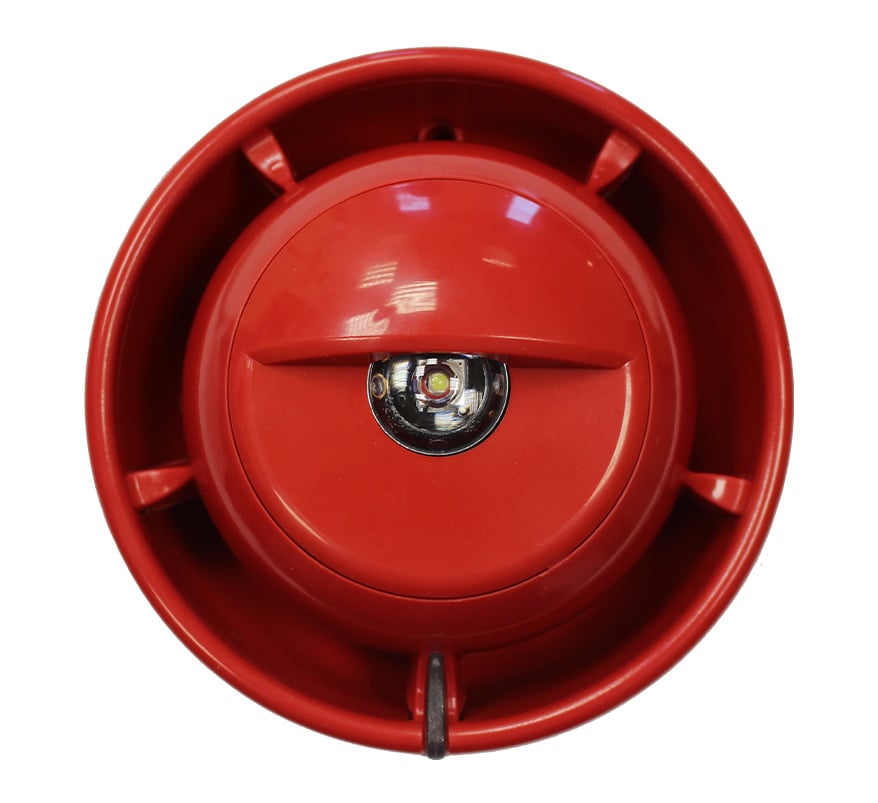

EMS SmartCell Wireless Wall Mounted Sounder VAD (Red Body / White Flash) (SC-32-0120-0001-99)

The EMS SmartCell Wireless Wall Mounted Sounder Beacon (red body, white flash), part number SC-32-0120-0001-99, is a battery-powered wireless sounder with an integrated EN54-23 visual alarm device (VAD) for wall mounting on the SmartCell wireless fire system. It needs no cabling back to the panel and, once added to the SmartCell control panel or SmartCell WZM, gives both audible and visual fire warning.

The device is rated Type B for indoor and outdoor use and has an inbuilt locking mechanism.

Key features

• Integrated sounder with 32 selectable tones
• Integrated EN54-23 VAD, white flash (category W-2.4-6)
• Fully wireless, quick and easy to install
• Inbuilt locking mechanism (Allen key release)
• Type B: suitable for indoor and outdoor use
• Mounting plate fixes at 60 mm centres; two fixing positions can be used on existing electrical mounting boxes

Technical specifications

• Part number: SC-32-0120-0001-99
• Body colour: red; flash colour: white
• Sound output: 95 dB(A) at 1 m max.
• Sounder tones: 32 selectable
• VAD category: W-2.4-6
• Flash rate: 0.5 Hz (1 flash every 2 seconds)
• Power supply: 3 x 3.6 V lithium thionyl chloride batteries (Fanso ER14505M or HCB ER14505M)
• Operating voltage: 2.7 to 3.65 VDC
• Current consumption: 0.32 A max.; power consumption: 0.8 W max.
• Operating frequency: 868 MHz
• Output transmitter power: 14 dBm / 25 mW
• Signalling protocol: X5
• Operating temperature (and storage without batteries): -10 to +55 °C
• Storage temperature with batteries: -10 to +30 °C
• Humidity: 0 to 95% non-condensing
• IP rating: IP33, Type B indoor/outdoor use
• Dimensions: 110 mm diameter x 77 mm depth
• Weight: 0.20 kg
• Approvals: EN54-3, EN54-13, EN54-23 and EN54-25 (0359-CPR-00428)

What's in the box

• Sounder beacon
• Mounting plate
• 3 x ER14505M lithium batteries (not included in some regions)
