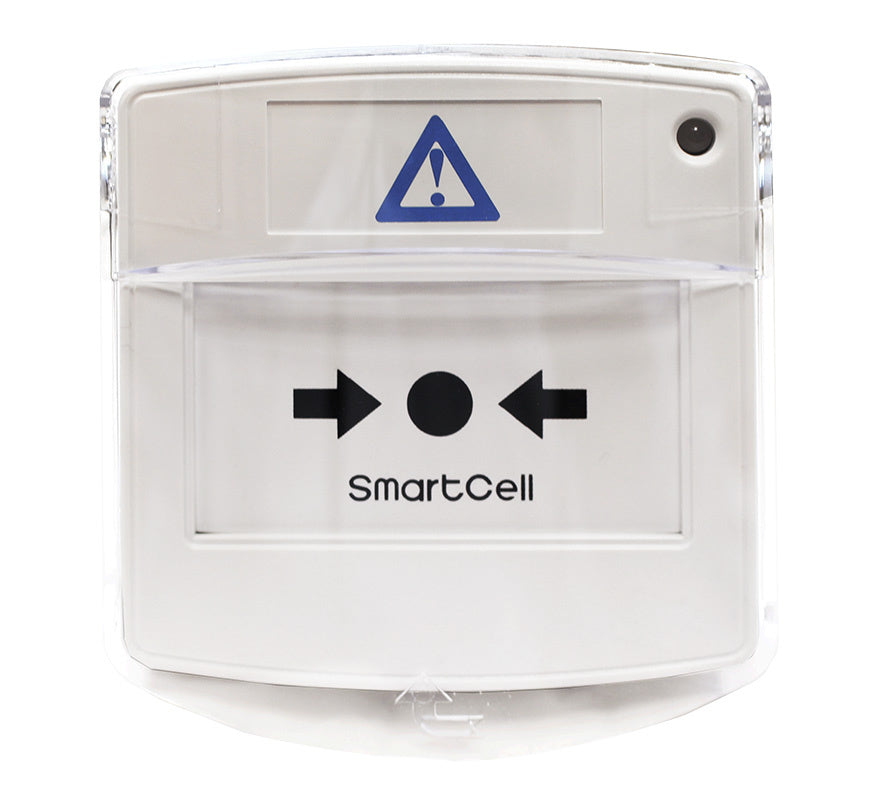

The EMS SmartCell Wireless Information Manual Call Point (SC-52-0200-0001-99) is a wireless push-button device that raises an information alert on the SmartCell Wireless Control Panel, separate from the system’s fire zones. It is not for fire or security applications.
It is battery powered, fixes to the wall or to an existing electrical mounting box, and has a transparent protective cover and optional breakable tag.
Key features
- Raises information alerts on the SmartCell control panel
- Fully wireless and battery powered
- Protective transparent cover and 2 x breakable tags
- Inbuilt locking mechanism with Allen key
- Reset key included
- Alternative fixing positions (60 mm centres) for existing electrical mounting boxes
Technical specifications
- Power supply: 2 x 3.6 V lithium thionyl chloride batteries (Fanso or HCB ER14505M)
- Operating voltage: 2.7 to 3.65 VDC
- Operating frequency: 868 MHz
- Output transmitter power: 14 dBm / 25 mW
- Signalling protocol: X5
- Operating temperature: -10 to +55 °C
- Storage temperature: -10 to +30 °C with batteries, -10 to +55 °C without
- Humidity: 0 to 95% non-condensing
- Location: Type A, indoor use
- Dimensions (W x H x D): 92 x 97 x 47 mm
- Approval: EN54-13
What's in the box
- Information manual call point with mounting plate
- Transparent cover
- Allen key and reset key
- Breakable tags
- Batteries (not included in some regions)
