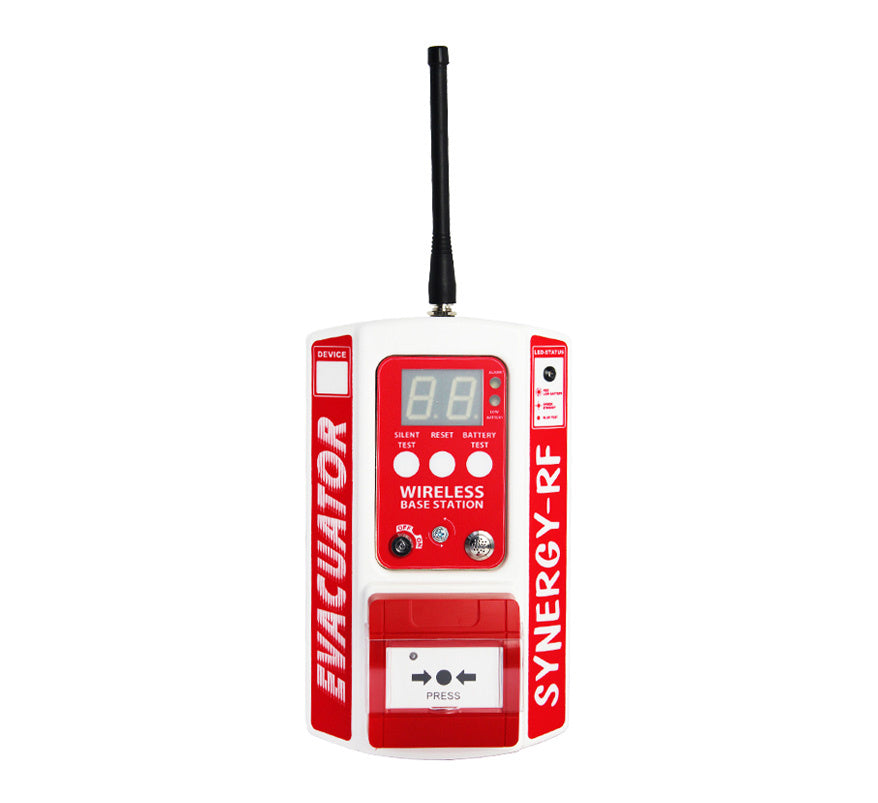

The Evacuator Synergy RF Base Station is the central control unit for a Synergy RF wireless site alarm system. It links up to 40 wireless devices, such as call points, sounder strobes and Synergy automatic detectors, into one network for construction sites, temporary buildings, events and workshops. The base station gives each device its own numerical address, shows which unit has activated, and monitors connected devices for problems such as low batteries.
Key features
- Completely wireless, battery-powered operation with no mains required
- Up to 40 addressable wireless devices
- Bright 25 mm LED display for alarm, test and system messages
- 85 dB buzzer
- Silent range test to confirm signal coverage across the site
- System battery monitor with automatic low-battery indication
- Category 1 radio module
- Scratch-resistant UV decals
- Optional mains power; first aid call option
- Plug-and-play self-installation; manufactured in the UK
Technical specifications
- Addressable devices: up to 40
- Buzzer output: 85 dB
- Display: 25 mm LED
- Power source: 9 V battery pack (FMCEVAWBPACK2)
- IP rating: IP55
- Weight: 1.2 kg
- Compliance: CE, UKCA, RoHS, EMC; tested to the RED directive
