This FFE Fireray 3000 detector pack (3000-015) contains a transmitter and receiver to add a second end-to-end beam detector to an existing Fireray 3000 system. Each Fireray 3000 controller supports single or twin detector configurations, with separate fire and fault relays for each detector.
The transmitter projects an infrared beam to the receiver; when smoke crosses the beam and the signal falls below a pre-set threshold, an alarm is triggered. The receiver has an integral laser so one person can align the pair.
Key features
- Adds a second detector to a Fireray 3000 controller
- Integral laser alignment in the receiver
- Thumbwheels give 10° of adjustment in both planes
- 2-wire interface between controller and receiver
- Transmitter can be powered from the controller
- Light Cancellation Technology™
Technical specifications
- Operating range: 5m to 120m (EN54), 10m to 120m (UL)
- Operating voltage: 12 to 36V DC ±10%
- Transmitter current: 8mA per transmitter
- Optical wavelength: 850nm
- Operating temperature (non-condensing): -10°C to +55°C (EN54), -20°C to +55°C (UL)
- Relative humidity: 93% (non-condensing)
- Housing material: UL94 V2 PC
- Transmitter and receiver: 77 x 78 x 161mm (H x W x D), 207g each

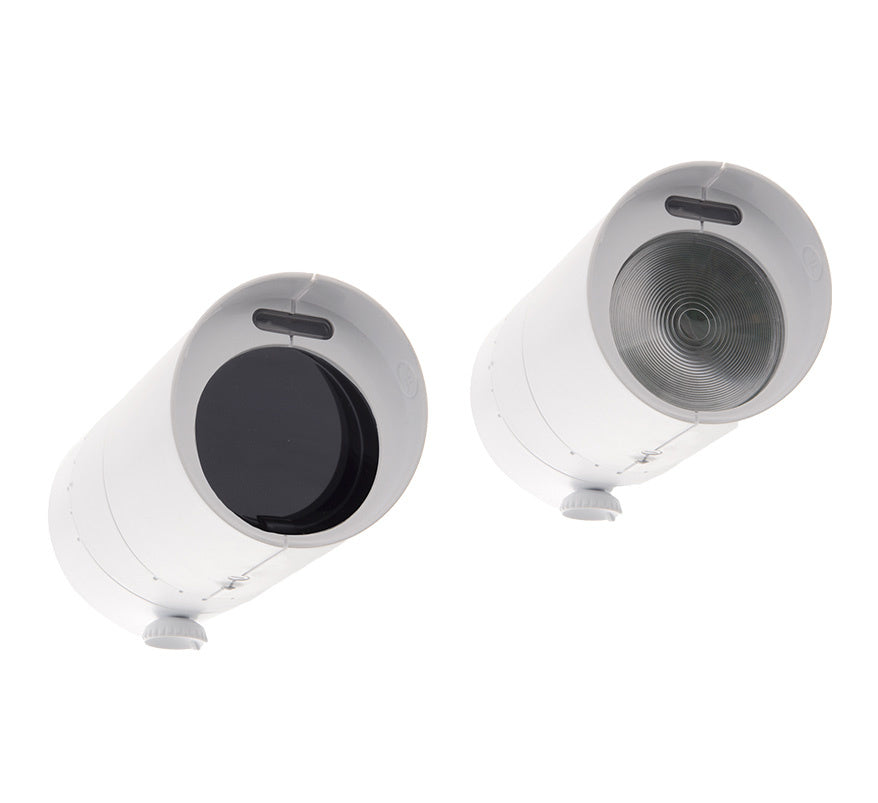

What's in the box
- 1 x transmitter (clear lens)
- 1 x receiver (dark lens)
