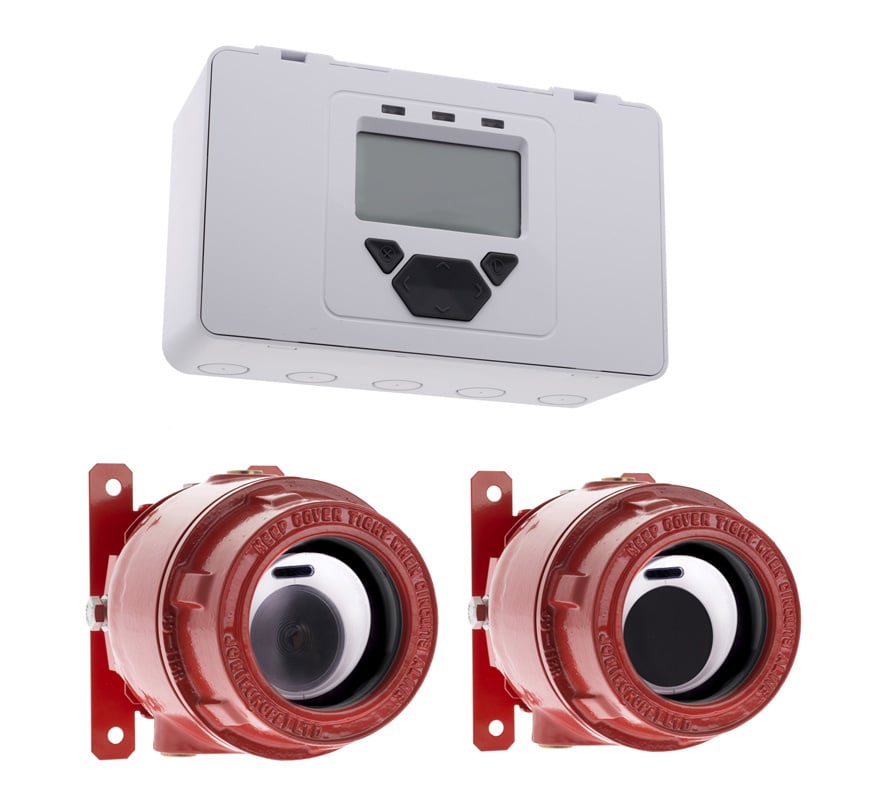

The FFE Fireray 3000 Ex d (3000-115) is an explosion-proof end-to-end infrared beam smoke detector system for large areas with potentially explosive atmospheres. The transmitter and receiver are ATEX certified for use in Group 2 hazardous areas, while the wall-mounted low-level control unit sits in a safe area so adjustment and testing can be done from a non-hazardous location.
It is designed for large enclosures within oil rigs, refineries, ordnance stores, chemical plants and similar premises, giving early warning of smouldering or smoky fires that flame detectors may not pick up. Fire and fault relays connect to a conventional fire alarm zone.
Key features
- Transmitter and receiver certified Ex d, in red copper-free aluminium alloy housings
- Range 10m to 80m, configurable per set of detectors
- Integral laser alignment in the receiver
- Up to 2 detectors per controller, with separate fire and fault relays per detector
- Safe-area controller with LCD display
- Programmable sensitivity and fire/fault delay
- Contamination compensation for dust and building movement
- Light Cancellation Technology™
- Transmitter can be powered from the controller
- Complies with ATEX and EN54-12
Technical specifications
- Operating range: 10m to 80m
- Operating voltage: 12 to 36V DC ±10%
- Controller current (with 1 or 2 receivers): 14mA constant
- Transmitter current: 8mA per transmitter
- Delay to alarm/fault: 2 to 30 seconds, 10 seconds typical
- Response threshold: 25% to 60%, 35% typical (EN54-12 compliance at 25% with a maximum 20 second delay)
- Fire and fault relay contacts: VFCO 2A at 30V DC resistive
- Optical wavelength: 850nm
- Operating temperature: -10°C to +55°C (EN54-12), -20°C to +55°C (ATEX)
- Relative humidity: 93% (non-condensing)
- IP rating: IP54 (controller), IP66 (transmitter/receiver)
- Cable gland entries: 3 x 20mm (Peppers E3WBF Ex d cable glands)
- Weight: control unit 606g; transmitter and receiver 3.7kg each including brackets
- Controller housing: UL94 V2 PC, white RAL 9016
- CPR reference: 0786-CPR-21669
What's in the box
- 1 x transmitter (clear lens)
- 1 x receiver (dark lens)
- 1 x control unit
- 1 x fixing kit
- 2 x brackets
