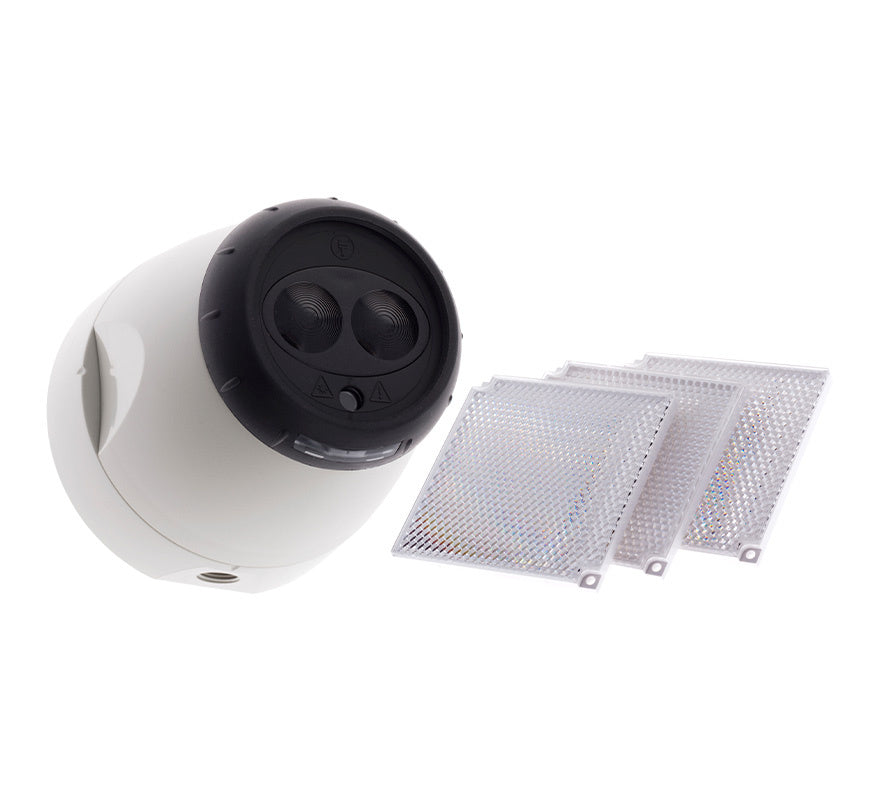

FFE Fireray 5000 Single Reflective Beam Detector Pack (100m) (5000-039)

The FFE Fireray 5000 (5000-039) is a single Fireray 5000 motorised reflective, auto-aligning infrared beam smoke detector for long-range use (up to 100 m). The detector combines the infrared transmitter and receiver in one unit and projects a beam to a reflective prism, which returns it for analysis. When smoke in the beam path reduces the signal below a set level, it signals an alarm.

The detector works with a Fireray 5000 system controller, which can run up to two detectors. It is well suited to large open areas where point detection would be difficult or costly to install.

Key features

• Motorised Auto-Align for fast, automatic beam alignment
• Integral laser to position the reflector quickly
• Contamination compensation
• Easifit first-fix system
• Working optical path for detector alignment
• Approvals include EN 54-12 and UL 268

Technical specifications

• Part number: 5000-039
• Operating distance: 8 m to 100 m (4 reflectors required over 50 m; short range mask required under 18 m)
• Optical wavelength: 850 nm
• Maximum angular alignment of detector: ±3.5°
• Fault level / rapid obscuration: 87%
• Operating temperature: −10°C to +55°C
• IP rating: IP54
• Detector dimensions including base (W x H x D): 134 x 131 x 134 mm
• Detector weight: 0.5 kg
• Reflector: 100 x 100 x 10 mm, 0.1 kg
• CPR reference: 0832-CPR-F0390
