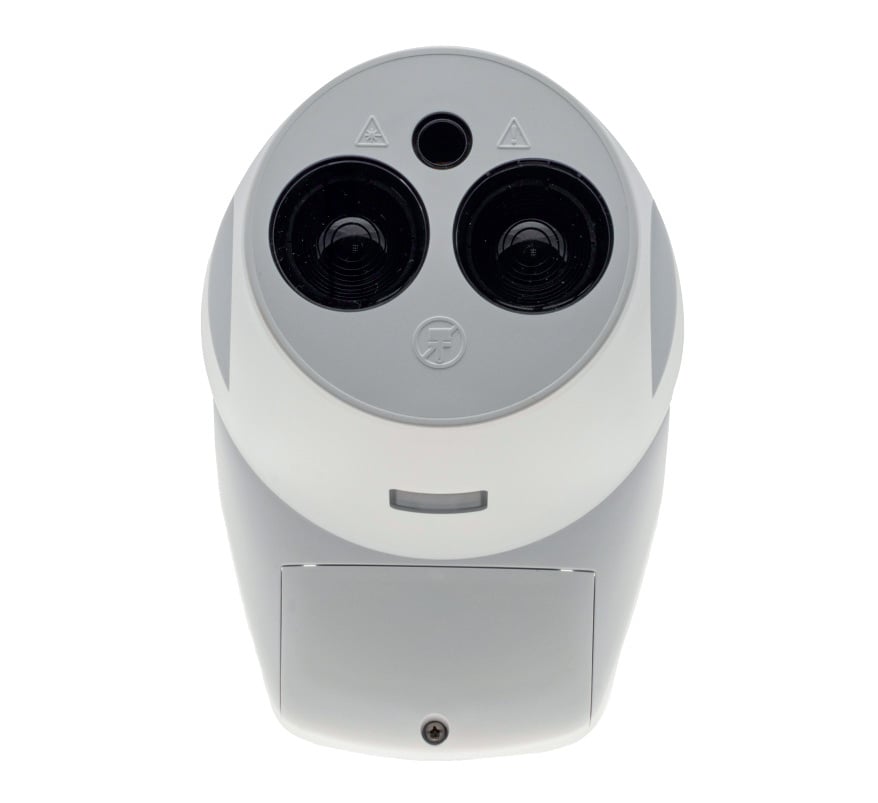

FFE Fireray One Auto-Aligning Reflective Beam Detector (6010-100)

The FFE Fireray One (6010-100, EN version) is a standalone, motorised reflective beam smoke detector with Auto-Alignment™. The detector projects an infrared beam to a reflector and raises an alarm when smoke reduces the returned signal, protecting large open spaces such as warehouses, atria and industrial units from a single wall-mounted unit.

With a single point of wiring and commissioning, it connects to a conventional fire alarm zone through its alarm and fault relays. It covers 5m to 50m on its own and up to 120m with the Reflective Long Range Kit.

Key features

• Auto-Alignment™: steer the laser onto the reflector and the detector aligns itself, eight times faster than previous detectors
• One-person installation with no specialist tools
• Building Movement Tracking™ compensates for natural shifts in alignment
• Contamination compensation for build-up on the optical surfaces
• Light Cancellation Technology™ for high levels of sunlight and artificial light
• Dynamic Beam Phasing allows detectors to face each other without crosstalk
• Integrated user interface for alignment and threshold settings
• Flat front face with enclosed optics: cleaning does not affect alignment
• Approvals include EN 54-12, UL 268, FM 3230 and AS7240.12

Technical specifications

• Detection range: 5m to 50m; 50m to 120m with the Reflective Long Range Kit
• Alignment: laser-assisted Auto-Alignment™, or manual
• Operating voltage: 14 to 36V DC
• Operating current: 5mA; 33mA in fast alignment mode
• Alarm response thresholds: 25%, 35% (default), 55% or 85%
• Delay to alarm and delay to fault: 10 seconds
• Signal output: individual alarm and fault relays (VFCO), 0.5A at 30V DC
• Optical wavelength: 850nm near infrared; alignment laser 650nm, Class 3R, <5mW
• Maximum angular alignment: ±4.5° (±70° with adjustment bracket accessory)
• Fault level (rapid obscuration within 2 seconds): ≥85%
• Beam path clearance: 0.5m radius from the centre line
• Cable: 2-core dedicated, 0.5 to 1.6mm (24 to 14 AWG); 3 knock-outs for M20, ½in or ¾in glands
• Operating temperature: -20°C to +55°C
• Storage temperature: -40°C to +85°C
• Relative humidity: 0 to 93% (non-condensing)
• IP rating: IP55
• Housing: UL94 V0 polycarbonate, white RAL9016
• Detector: 181 x 130 x 134mm (H x W x D), 0.7kg
• Reflector: 100 x 100 x 9mm, 0.1kg
