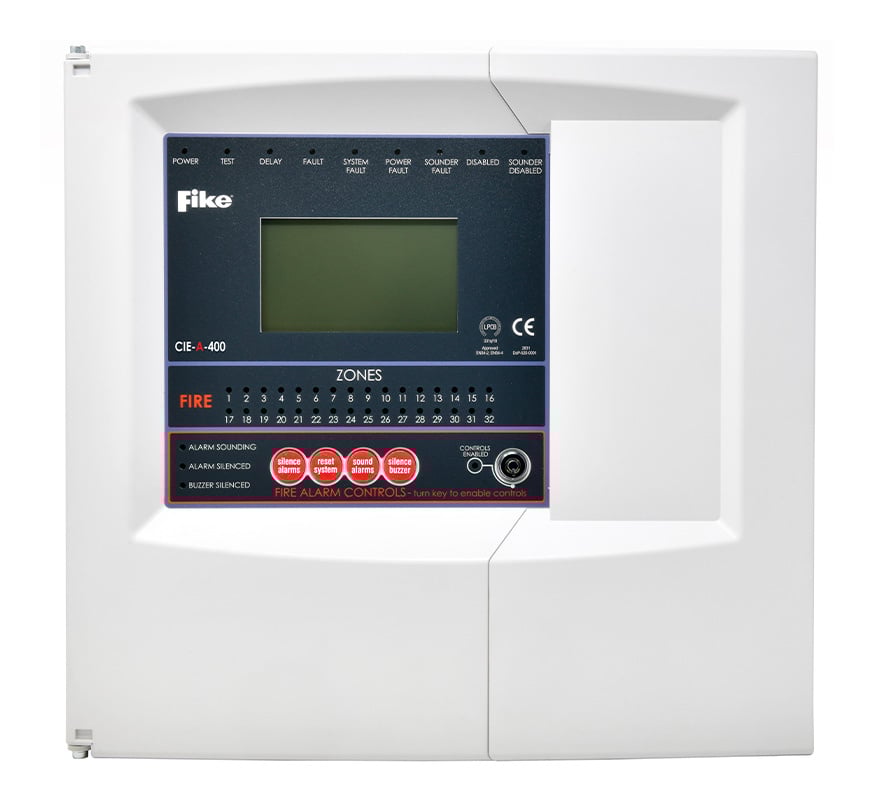

Fike CIE-A-400 1-2 Loop Addressable Fire Alarm Panel c/w 1 Loop Card (540-0001)

The Fike CIE-A-400 (540-0001) is a 1–2 loop analogue addressable fire alarm control panel. It is supplied with one loop card fitted, and a second loop needs the additional 540-0003 loop card. Each loop supports up to 200 devices over up to 2 km. The panel works with Fike's Sita addressable device range and uses soft addressing: devices are addressed automatically when the loop initialises, so you don't set addresses by hand and duplicate-address faults are avoided.

Key features

• Supplied with one loop card; expandable to two loops
• Up to 200 devices per loop, loop length up to 2 km
• 32 fire zones plus 32 output zones for cause and effect programming
• 3 alarm stages with full zone-to-zone cause and effect, alarm confirmation and delay timers
• Soft addressing and built-in device isolators
• Up to 8 repeater panels on the peripheral bus
• 1000-event history log and graphical LCD
• Configurable from the panel or with OSP programming software (licensed on completion of Fike addressable training)
• Approved to EN 54 Parts 2 and 4

Technical specifications

• Loops: 1 supplied, 2 maximum
• Loop loading: 450 DLU (200 devices max) per loop
• Max loop length: 2000 m; max conductor resistance: 24 Ω
• Loop operating voltage: 40 V DC; max loop current: 500 mA
• Zones: 32
• Inputs: 2 x monitored (3k3 EOL, 680R firing resistor)
• Outputs: 3 x volt-free relay (30 V DC @ 1 A max); 2 x monitored output (32 V DC @ 250 mA max, 10k EOL)
• Aux power output: 30 V DC, 350 mA
• Device labels: 31 characters; event log: 1000 events
• Mains supply: 230 V AC nominal; standby 24 V DC
• Standby batteries: 2 x 12 V 7/9Ah SLA (2 x 12/17Ah with extended battery box 540-0020)
• Dimensions (W x H x D): 353 x 333 x 117 mm
• Operating temperature: -5°C to +40°C; IP30
