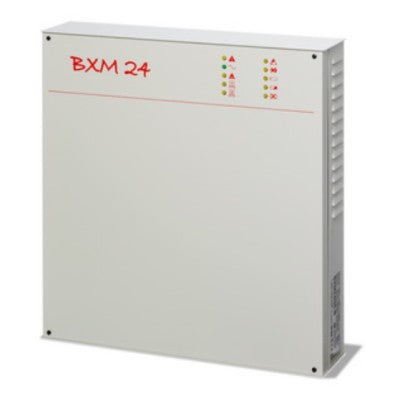

BXM24/25-U Microprocessor controlled power station - Max. 2,5A @ 27,6VDC
The BXM24/25-U and 50-U are approved by IMQ to EN 54-4:1997 + A1:2002 and EN60950-1:2001. The steel housing contains a 2.5 amp or 5 amp switch mode power supply and monitoring board and has space to accommodate 2 x 12V 17Ah sealed lead acid batteries. The 10 front panel LED’s comprehensively indicate the status of the unit.
Key Features:
- Robust metal housing.
- Twin fused outputs.
- Temperature compensated charging.
- Deep discharge protection of batteries.
- Fault relay output.
- Size 383mm wide x 408mm high x 97mm deep.
- Weight 4.3 Kg (excluding batteries).
- Supply voltage 230VAC 50/60Hz.
- Comprehensive LED status indication.
